NATIVE-C2MicroTCA system with redundant backplane fabric
- Manufacturer
- Configurations
- 1 available configurations

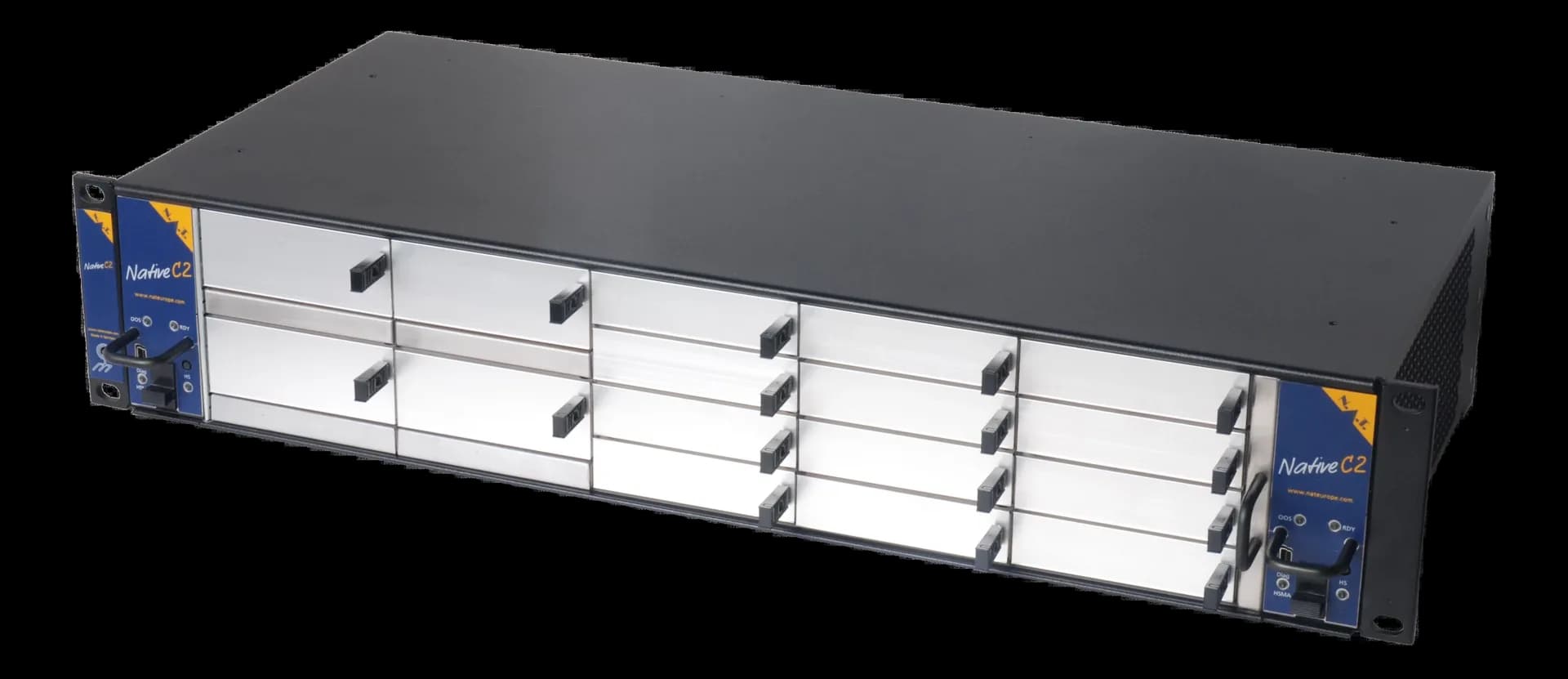

NATIVE-C2 is a complete MicroTCA system with a redundant fabric backplane: the AMC modules have two distinct communication paths, so that the loss of one link does not isolate the boards.
It is the difference that counts in plants in continuous service, where the continuity of the internal channel weighs as much as that of the power supply. The system exposes a USB port for service access, declares a storage range from -45 to 70 °C and is supervised through the IPMI interface.
At a glance
- Cooling: Fan (active)
Technical specifications
| Ethernet ports | AMC Port 0: 1 GbE routed between MCH1 and each AMC |
|---|---|
| Connectors | USB |
| Other I/O | Redundant backplane fabric with up to 40G Ethernet |
| AMC slot configuration | 12x AMC (max. power: 80W/slot) |
|---|---|
| IPMI management | Intelligent Platform Management Interface |
| Weight | 4.082 kg |
|---|
| Storage temperature | -45–70 °C |
|---|---|
| Cooling | Fan (active) |
| MTBF | 70000 h |
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
Family configurations
The order codes of this family: the sheet applies to all of them, the detail of each configuration is in the datasheet.
| Configuration (PN) |
|---|
| NATIVE-C2-02 |
