NATIVE-C1Compact MicroTCA system with high-speed Ethernet backplane
- Manufacturer
- Configurations
- 1 available configurations

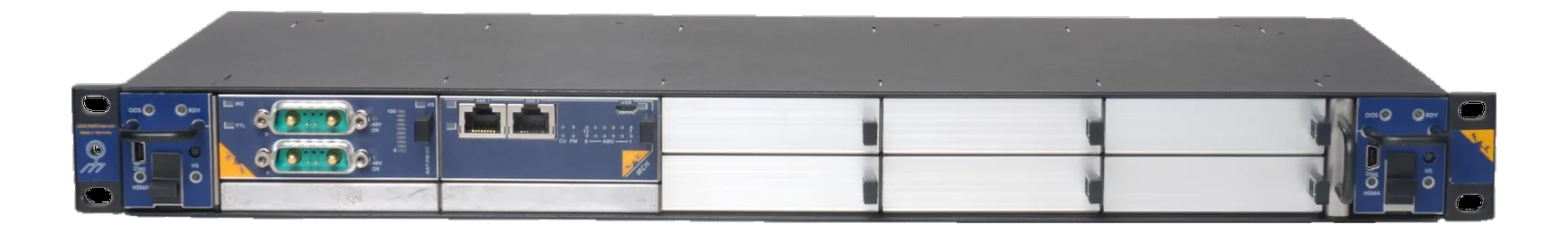

NATIVE-C1 is a MicroTCA system in compact format: it gathers backplane, power supply, cooling and management into a single enclosure, so that integration comes down to inserting the AMC modules chosen for the application.
It is the format for installations where there is no rack cabinet, for example test benches and mobile systems. The declared system consumption is 29 W and the storage range runs from -45 to 70 °C; the service connections include a USB port and supervision goes through the IPMI interface. The declared profiles are AMC.0, AMC.1 and AMC.2.
At a glance
- Architecture standard: AMC
- Power consumption: 29 W
- Cooling: Fan (active)
Technical specifications
| Ethernet ports | Gigabit Ethernet |
|---|---|
| Connectors | USB |
| Other I/O | Backplane with up to 40G Ethernet |
| Architecture standard | AMCAMC.1AMC.2 |
|---|---|
| IPMI management | Intelligent Platform Management Interface |
| Power consumption | 29 W |
|---|
| Weight | 2.722 kg |
|---|
| Storage temperature | -45–70 °C |
|---|---|
| Cooling | Fan (active) |
| MTBF | 70000 h |
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
Family configurations
The order codes of this family: the sheet applies to all of them, the detail of each configuration is in the datasheet.
| Configuration (PN) |
|---|
| NATIVE-C1-03 |
