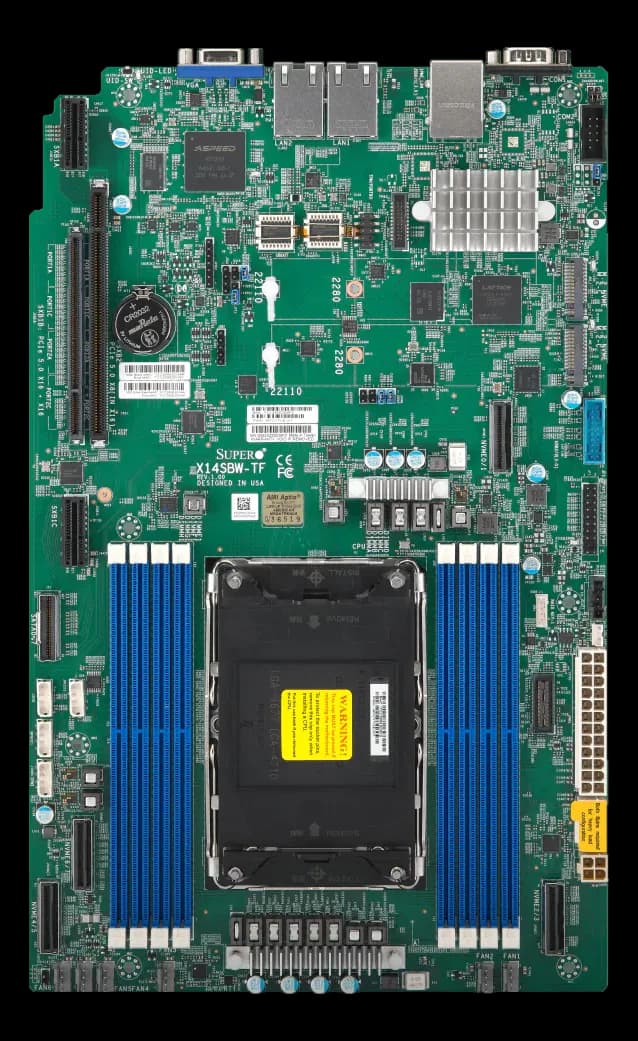

MBD-X14SBW-TFServer motherboard with Intel SoC platform and LGA4710 socket
- Manufacturer
- Configurations
- 2 available configurations
MBD-X14SBW-TF is a server motherboard in WIO form factor: it takes Intel Xeon 6 processors, with TDP up to 350 W. Memory reaches 2 TB, with error correction.
Expansion offers PCIe x16, PCIe x8 and M.2 slots. Networking combines 10 Gigabit and Gigabit ports. Video outputs cover VGA. Storage covers M.2 NVMe, M.2 SATA and SATA.
At a glance
- CPU generation: Xeon 6
- Processor: Single Socket E2 (LGA-4710); Intel® Xeon® 6700/6500 series processors with P-cores or 6700 series processors with E-cores; *BIOS 1.1a or above is required to support Intel® Xeon® 6700/6500-series processors with P-cores · Supports the Intel® Xeon® 6700/6500-series processors with P-cores or Intel® Xeon® 6700-series processor with E-cores, and a thermal design power (TDP) of up to 350 W
- CPU TDP: 350 W
- TPM: TPM 2.0
- CPU cores: 1–144
Technical specifications
| BIOS | AMI 64MB UEFI · ACPI 6.5; SMBIOS 3.7 or later; UEFI 2.9 · 512 Mb AMI BIOS® SPI Flash BIOS; ACPI 6.5 or later, Plug and Play (PnP) SPI dual/quad speed support, riser card auto detection support, SMBIOS 3.7.0 or later |
|---|---|
| CPU generation | Xeon 6 |
| Processor | Single Socket E2 (LGA-4710); Intel® Xeon® 6700/6500 series processors with P-cores or 6700 series processors with E-cores; *BIOS 1.1a or above is required to support Intel® Xeon® 6700/6500-series processors with P-cores · Supports the Intel® Xeon® 6700/6500-series processors with P-cores or Intel® Xeon® 6700-series processor with E-cores, and a thermal design power (TDP) of up to 350 W |
| CPU TDP | 350 W |
| TPM | TPM 2.0 |
| CPU cores | 1–144 |
| CPU socket count | 1–1 |
| CPU class | Intel Xeon |
| Chipset | SoC |
| Graphics | Graphics controller via ASpeed AST2600 BMC |
| CPU socket | LGA4710 |
| RAM type | DDR5 |
|---|---|
| ECC support | sì |
| Maximum RAM | 2048–2048 GB |
| Memory | Slot Count: 8 DIMM Slots; Max Memory (1DPC): Up to 512GB 8000MT/s ECC DDR5 MRDIMM (P-core only) · 1.1V · Corrects single-bit errors; Detects double-bit errors (using ECC memory) · Supports up to 2 TB of 3DS RDIMM/MRDIMM DDR5 ECC memory with speeds of up to 8000 MT/s in eight DIMM slots. Note: Intel® Xeon® 6700/6500-series processors with P-cores is required to support MRDIMM. · DDR5 RDIMM: 16 GB, 24 GB, 32 GB,48 GB, 64 GB, 96 GB, 128 GB; DDR5 3DS RDIMM: 256 GB; DDR5 MRDIMM (P-cores only): 32 GB, 64 GB. Note: Memory speed support depends on the processor used in the system. |
| Storage | 8 SATA (6Gbps) via ASMediaASM1164 · 2 M.2 PCIe 5.0 x2 slots (M-key 2280/22110) · MCIO PCIe 5.0 x8 Connectors · Asmedia SATA 3.0 Ports · VROC RAID Key Header |
|---|
| Video outputs | 1 VGA D-Sub Connector port(s) · One VGA port; One COM port; One COM header; One TPM header; One NC-SI header |
|---|
| Other I/O | 6x 4-pin fan headers (up to 6 fans); Fan speed control; Overheat LED indication |
|---|---|
| USB ports | 2 USB 3.2 Gen1 port(s) (Header); 2 USB 3.2 Gen1 port(s) (Rear) · Two rear accessible USB 3.2 Gen 1 ports; One USB 3.2 Gen 1 header |
| Ethernet ports | Dual LAN with 10GBase-T with Intel® X550 · 2 RJ45 10 GbE LAN port(s); 1 RJ45 1 GbE Dedicated IPMI LAN port(s) · Dual 10 GbE (X14SBW-TF, X550) LAN ports; One dedicated BMC LAN |
| Serial interfaces | 1 COM port(s) (header); 1 COM port(s) (rear) |
| Form factor | WIO |
|---|
| Expansion | 1 PCIe 5.0 x8 Right Riser slot; 1 PCIe 5.0 x32 Left Riser slot; 4 PCIe 5.0 x8 via MCIO Connector slots · One PCIe 5.0 x16 + x16 slot (JSXB1B); One PCIe 5.0 x8 (in x16) slot (JSXB2); Four MCIO PCIe 5.0 x8 connectors for eight NVMe connections; Eight SATA 3.0 (via SlimSAS x8) connections; Two M.2 M-Key PCIe 5.0 x2 connectors in the 2280/22110 form factors · PCIe 5.0 x16 + x16 Supermicro Proprietary WIO Left Add-on Card Slots · PCIe 5.0 x8 (in x16) Supermicro Proprietary WIO Right Add-on Card Slot |
|---|
| Power input | ACPI power management; Power button override mechanism; Power-on mode for AC power recovery; Power supply monitoring; RoHS · 8-pin +12 V CPU Power Connector · 4-pin +12 V CPU Power Connector · 24-pin ATX Power Connector (Required) |
|---|
| Dimensions | 330.2 × 230.2 |
|---|---|
| Other features | ASPEED AST2600 BMC · SuperCloud Composer® (SCC); Supermicro Server Manager (SSM); Super Diagnostics Offline (SDO); Supermicro Thin-Agent Service (TAS); SuperServer Automation Assistant (SAA) New!; Plug-ins for 3rd Party Software · +12V,+3.3V,+5V,+5V standby,6 -fan status,Chassis intrusion header,Memory Voltages,Monitors CPU voltages,Supports system management utility,System level control,VBAT · CPU/system overheat LED; UID/remote UID LED · ACPI power management; Chassis intrusion detection; Control of power-on for recovery from AC power loss; M.2 NGFF connector; UID; WOL · ASpeed AST2600 BMC · Onboard voltage monitoring for 3.3 V, +5 V, +12 V, +3.3 VStby, +5 VStby, Vcore, CPU temperature, system temperature, peripheral temperature, memory temperature, GPU temperature, and NVMe temperature; CPU thermal trip support; Platform Environment Control Interface (PECI)/TSI · Six 4-pin fan headers; Fan speed control · Onboard TPM9672: TCG 2.0, FIPS 140-2 Level 2 certified; Platform Environment Control Interface (PECI) 3.0 support; Watchdog, NMI; Chassis intrusion header and detection; Intel Active Management Technology |
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
