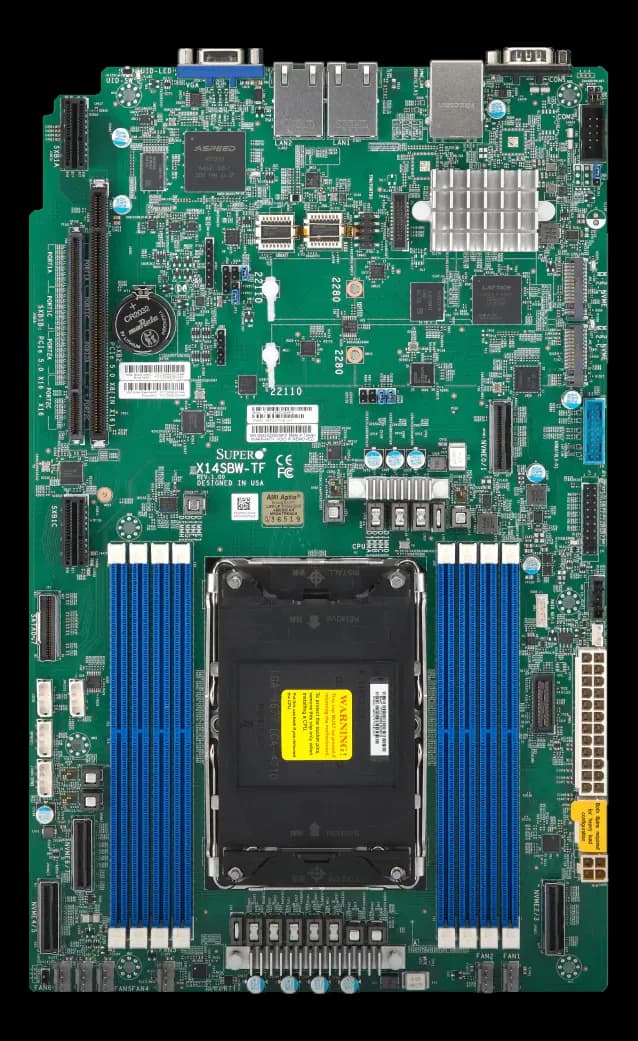

MBD-X14SBW-TFScheda madre server con SoC Intel e socket LGA4710
- Produttore
- Configurazioni
- 2 configurazioni disponibili
MBD-X14SBW-TF è una scheda madre server in formato WIO: accetta processori Intel Xeon 6, con TDP fino a 350 W. La memoria DDR5 arriva a 2 TB, con correzione d’errore.
L'espansione offre slot PCIe x16, PCIe x8 e M.2. La rete combina porte 10 Gigabit e Gigabit. Le uscite video comprendono VGA. Lo storage copre M.2 NVMe, M.2 SATA e SATA.
In sintesi
- Generazione CPU: Xeon 6
- Processore: Single Socket E2 (LGA-4710); Intel® Xeon® 6700/6500 series processors with P-cores or 6700 series processors with E-cores; *BIOS 1.1a or above is required to support Intel® Xeon® 6700/6500-series processors with P-cores · Supports the Intel® Xeon® 6700/6500-series processors with P-cores or Intel® Xeon® 6700-series processor with E-cores, and a thermal design power (TDP) of up to 350 W
- TDP CPU: 350 W
- TPM: TPM 2.0
- Core CPU: 1–144
Specifiche tecniche
| BIOS | AMI 64MB UEFI · ACPI 6.5; SMBIOS 3.7 or later; UEFI 2.9 · 512 Mb AMI BIOS® SPI Flash BIOS; ACPI 6.5 or later, Plug and Play (PnP) SPI dual/quad speed support, riser card auto detection support, SMBIOS 3.7.0 or later |
|---|---|
| Generazione CPU | Xeon 6 |
| Processore | Single Socket E2 (LGA-4710); Intel® Xeon® 6700/6500 series processors with P-cores or 6700 series processors with E-cores; *BIOS 1.1a or above is required to support Intel® Xeon® 6700/6500-series processors with P-cores · Supports the Intel® Xeon® 6700/6500-series processors with P-cores or Intel® Xeon® 6700-series processor with E-cores, and a thermal design power (TDP) of up to 350 W |
| TDP CPU | 350 W |
| TPM | TPM 2.0 |
| Core CPU | 1–144 |
| N° socket CPU | 1–1 |
| Classe CPU | Intel Xeon |
| Chipset | SoC |
| Grafica | Graphics controller via ASpeed AST2600 BMC |
| Socket CPU | LGA4710 |
| Tipo RAM | DDR5 |
|---|---|
| Supporto ECC | sì |
| RAM massima espandibile | 2048–2048 GB |
| Memoria RAM | Slot Count: 8 DIMM Slots; Max Memory (1DPC): Up to 512GB 8000MT/s ECC DDR5 MRDIMM (P-core only) · 1.1V · Corrects single-bit errors; Detects double-bit errors (using ECC memory) · Supports up to 2 TB of 3DS RDIMM/MRDIMM DDR5 ECC memory with speeds of up to 8000 MT/s in eight DIMM slots. Note: Intel® Xeon® 6700/6500-series processors with P-cores is required to support MRDIMM. · DDR5 RDIMM: 16 GB, 24 GB, 32 GB,48 GB, 64 GB, 96 GB, 128 GB; DDR5 3DS RDIMM: 256 GB; DDR5 MRDIMM (P-cores only): 32 GB, 64 GB. Note: Memory speed support depends on the processor used in the system. |
| Storage | 8 SATA (6Gbps) via ASMediaASM1164 · 2 M.2 PCIe 5.0 x2 slots (M-key 2280/22110) · MCIO PCIe 5.0 x8 Connectors · Asmedia SATA 3.0 Ports · VROC RAID Key Header |
|---|
| Uscite video | 1 VGA D-Sub Connector port(s) · One VGA port; One COM port; One COM header; One TPM header; One NC-SI header |
|---|
| Altri I/O | 6x 4-pin fan headers (up to 6 fans); Fan speed control; Overheat LED indication |
|---|---|
| Porte USB | 2 USB 3.2 Gen1 port(s) (Header); 2 USB 3.2 Gen1 port(s) (Rear) · Two rear accessible USB 3.2 Gen 1 ports; One USB 3.2 Gen 1 header |
| Porte Ethernet | Dual LAN with 10GBase-T with Intel® X550 · 2 RJ45 10 GbE LAN port(s); 1 RJ45 1 GbE Dedicated IPMI LAN port(s) · Dual 10 GbE (X14SBW-TF, X550) LAN ports; One dedicated BMC LAN |
| Interfacce seriali | 1 COM port(s) (header); 1 COM port(s) (rear) |
| Formato modulo | WIO |
|---|
| Espansione | 1 PCIe 5.0 x8 Right Riser slot; 1 PCIe 5.0 x32 Left Riser slot; 4 PCIe 5.0 x8 via MCIO Connector slots · One PCIe 5.0 x16 + x16 slot (JSXB1B); One PCIe 5.0 x8 (in x16) slot (JSXB2); Four MCIO PCIe 5.0 x8 connectors for eight NVMe connections; Eight SATA 3.0 (via SlimSAS x8) connections; Two M.2 M-Key PCIe 5.0 x2 connectors in the 2280/22110 form factors · PCIe 5.0 x16 + x16 Supermicro Proprietary WIO Left Add-on Card Slots · PCIe 5.0 x8 (in x16) Supermicro Proprietary WIO Right Add-on Card Slot |
|---|
| Alimentazione | ACPI power management; Power button override mechanism; Power-on mode for AC power recovery; Power supply monitoring; RoHS · 8-pin +12 V CPU Power Connector · 4-pin +12 V CPU Power Connector · 24-pin ATX Power Connector (Required) |
|---|
| Dimensioni | 330.2 × 230.2 |
|---|---|
| Altre caratteristiche | ASPEED AST2600 BMC · SuperCloud Composer® (SCC); Supermicro Server Manager (SSM); Super Diagnostics Offline (SDO); Supermicro Thin-Agent Service (TAS); SuperServer Automation Assistant (SAA) New!; Plug-ins for 3rd Party Software · +12V,+3.3V,+5V,+5V standby,6 -fan status,Chassis intrusion header,Memory Voltages,Monitors CPU voltages,Supports system management utility,System level control,VBAT · CPU/system overheat LED; UID/remote UID LED · ACPI power management; Chassis intrusion detection; Control of power-on for recovery from AC power loss; M.2 NGFF connector; UID; WOL · ASpeed AST2600 BMC · Onboard voltage monitoring for 3.3 V, +5 V, +12 V, +3.3 VStby, +5 VStby, Vcore, CPU temperature, system temperature, peripheral temperature, memory temperature, GPU temperature, and NVMe temperature; CPU thermal trip support; Platform Environment Control Interface (PECI)/TSI · Six 4-pin fan headers; Fan speed control · Onboard TPM9672: TCG 2.0, FIPS 140-2 Level 2 certified; Platform Environment Control Interface (PECI) 3.0 support; Watchdog, NMI; Chassis intrusion header and detection; Intel Active Management Technology |
Dati estratti dalle schede tecniche dei produttori: per la conferma finale fa fede lo spec sheet ufficiale del prodotto.
