MBD-X14DBI-TDual socket E-ATX server motherboard for Intel Xeon 6700/6500
- Manufacturer
- Configuration
- MBD-X14DBI-T-B✕

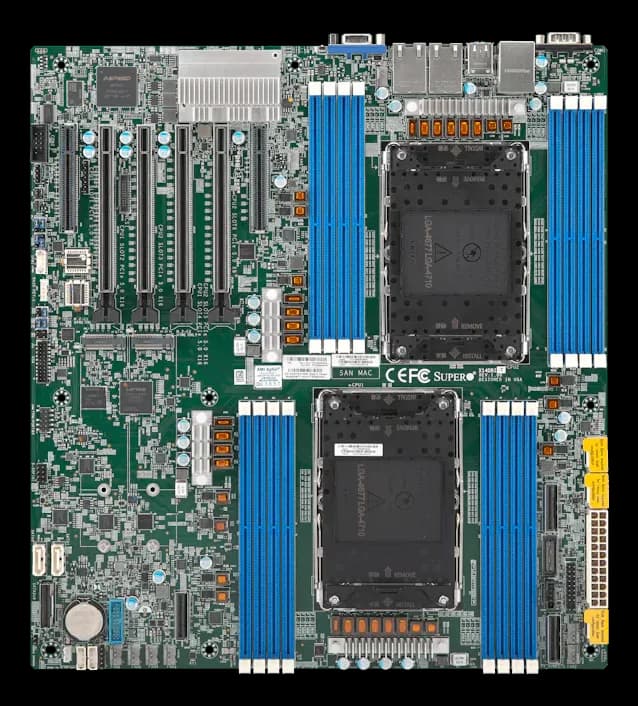

MBD-X14DBI-T is the X14 DP server board in E-ATX format, 12.1" x 13.1" (30.73 cm x 33.27 cm), with 16 DIMM slots and 10 SATA3 ports: it mounts in dual processor rack or tower chassis, not in compact systems.
The defining axis is the PCIe 5.0 lane budget: besides the physical slots, three additional x8 come out on MCIO connectors and the platform supports CXL 2.0. Management runs through the ASPEED AST2600 BMC with dedicated IPMI LAN port, alongside TPM 2.0 and monitoring on 8 fan headers.
The family also includes the code MBD-X14DBI-T-B.
At a glance
- CPUs up to 144 P-cores
- CPU support up to 350 W TDP
- 4 PCIe 5.0 x16 slots
- Dual 10GBase-T Broadcom BCM57416
- 2 M.2 PCIe 5.0 x4 slots
Technical specifications
| CPU socket | LGA4710 |
|---|---|
| CPU class | Intel Xeon |
| Processor | Intel® Xeon® 6700/6500 series with P-cores or 6700 series with E-cores |
| BIOS | *BIOS 1.2 or above is required to support Intel® Xeon® 6700/6500-series processors with P-cores |
| CPU TDP | 350 W |
| CPU cores | 144 |
| Memory | RDIMM DDR5 8000 MT/s |
|---|---|
| Maximum RAM | 1024 GB |
| RAM type | DDR5 |
| Ethernet ports | Dual LAN with 10GBase-T with Broadcom® BCM57416 · 1 RJ45 GbE Dedicated IPMI LAN port(s) |
|---|---|
| USB ports | 6× USB 3.2 Gen1 (4 rear and 2 via header) |
| Serial interfaces | 1× COM port(s) (rear) |
| Form factor | E-ATX |
|---|
| Expansion | 2 M.2 PCIe 5.0 x4 slots (M-key 2280/22110)2 PCIe 5.0 x8 slots4 PCIe 5.0 x16 slots |
|---|
| Dimensions | 12.1" x 13.1" (30.73cm x 33.27cm) |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
Family configurations
The order codes of this family: the sheet applies to all of them, the detail of each configuration is in the datasheet.
| Configuration (PN) |
|---|
| MBD-X14DBI-T-B |
