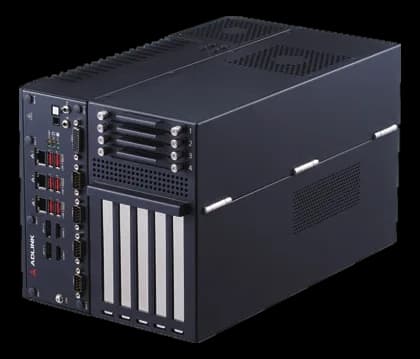

DLAP-8100Fanless edge AI workstation with a professional GPU
- Manufacturer
DLAP-8100 is a fanless ADLINK embedded workstation for AI inference, with 12th-14th generation Intel Core, up to 192GB DDR5 and GPU up to NVIDIA RTX 6000 Ada.
At a glance
- Processor: Intel Core 12ª/13ª/14ª gen (LGA1700, 35/65 W)
- Memory: Fino a 192GB DDR5 4800 (4× SODIMM)
- RAM type: DDR5
- Storage: 4 vani estraibili (3× SATA III, 1× USB-SATA), M.2 M-Key 2280 NVMe/SATA
- USB ports: 4× USB 3.2 Gen2 (Type-A), 2× USB 3.2 Gen1 (Type-A)
Technical specifications
| Processor | Intel Core 12ª/13ª/14ª gen (LGA1700, 35/65 W) |
|---|---|
| Graphics | NVIDIA RTX 6000 Ada |
| Memory | Fino a 192GB DDR5 4800 (4× SODIMM) |
|---|---|
| RAM type | DDR5 |
| Storage | 4 vani estraibili (3× SATA III, 1× USB-SATA), M.2 M-Key 2280 NVMe/SATA |
|---|
| Video outputs | 2× HDMI, 2× DP++ |
|---|
| Ethernet ports | 3× GbE |
|---|---|
| USB ports | 4× USB 3.2 Gen2 (Type-A), 2× USB 3.2 Gen1 (Type-A) |
| Serial interfaces | 2× RS-232/422/485, 2× RS-232 |
| Audio | 1× Mic-in/Line-out |
| Digital I/O | 8× DI, 8× DO |
| Expansion | 1× PCIe x16, 2× PCIe x4, 1× PCIe x1 |
|---|
| AC/DC input | AC |
|---|---|
| Power input | 100-240 VAC |
| Weight | 10 kg |
|---|
| Cooling | Fanless |
|---|---|
| Operating temperature | -20–60 °C |
| Storage temperature | -40–85 °C |
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
