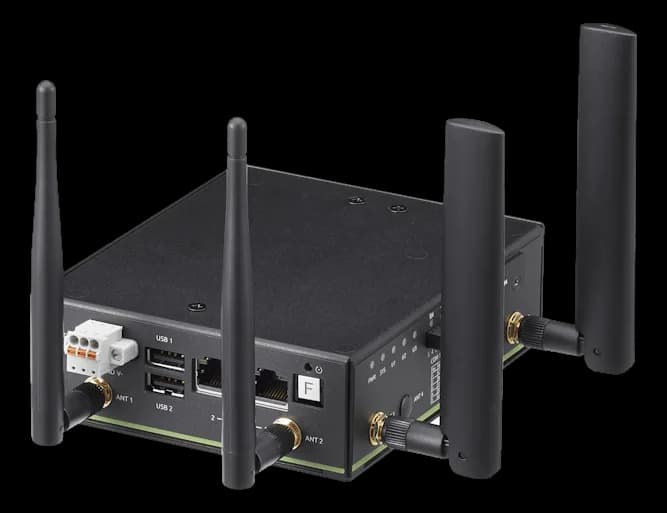

EMU-200DIN rail IIoT gateway with isolated serial ports
- Manufacturer
EMU-200 is an ADLINK IIoT gateway for field data collection and transmission to supervisory systems, installed in an electrical panel on DIN rail or on a wall, with UL certification.
The 1 GHz Arm Cortex-A9 is paired with 1 GB of DDR3 and 32 GB of eMMC; the field I/O includes two GbE RJ45 ports and two isolated RS-232/422/485 serial ports, configuration goes through the EGiFlow interface and operation is allowed from -40 to 70 °C.
At a glance
- Processor: ARM Cortex A9 1.0 GHz
- Memory: DDR3 1GB GB
- RAM type: DDR3
- Storage: 32 GB eMMC
- Serial interfaces: 2× RS-232/422/485 a 4 fili, isolate
Technical specifications
| Processor | ARM Cortex A9 1.0 GHz |
|---|
| Memory | DDR3 1GB GB |
|---|---|
| RAM type | DDR3 |
| Storage | 32 GB eMMC |
|---|
| Ethernet ports | 2× 10BASE-T/100BASE-TX/1000BASE-T (RJ45) |
|---|---|
| Serial interfaces | 2× RS-232/422/485 a 4 fili, isolate |
| Bus interface | EGiFlow |
|---|
| Mounting | Wall MountDIN Rail Mount |
|---|---|
| Dimensions | 40 × 131.4 × 110.9 mm |
| Operating temperature | -40–70 °C |
|---|---|
| Storage temperature | -40–85 °C |
| Certifications | UL |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
