AVA-1000ARM NXP i.MX8M Plus embedded computer, EN 50155 certified
- Manufacturer
- Configurations
- 1 available configurations

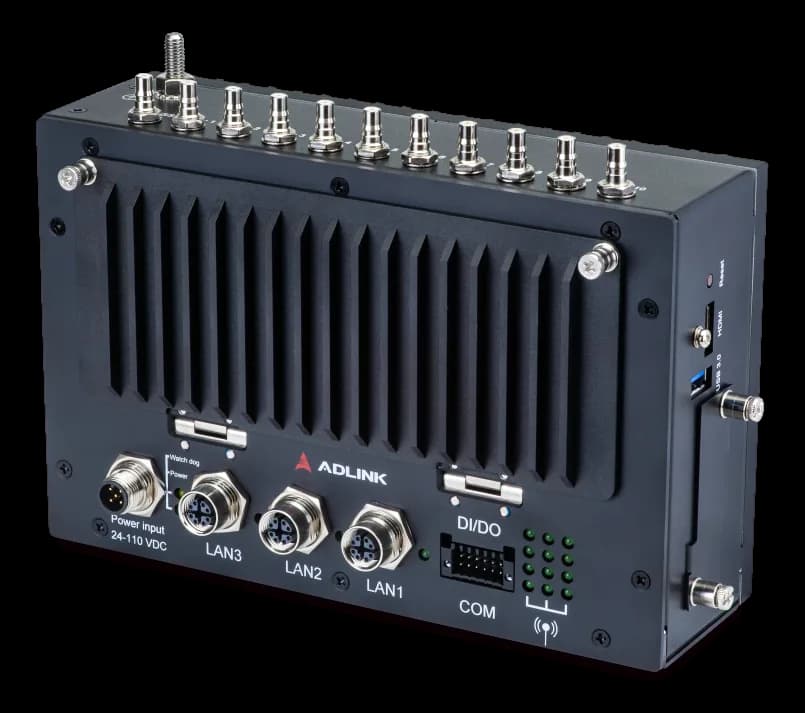

AVA-1000 is a fanless embedded computer for on-board railway applications: aluminum wall mount chassis of about 2 kg, EN 50155 and EN 50121 certifications, 30.5 W consumption and a 100 W power supply.
The quad-core NXP i.MX8M Plus Cortex-A53 SoC works with 64 GB eMMC and one M.2 2242 slot for an NVMe SSD; I/O includes three GbE ports on M12 X-coded connectors, HDMI, USB 3.1, one RS-232/422/485 serial port and 4 DI/4 DO on a terminal block, with Wi-Fi, 5G and GNSS modules and Linux support.
At a glance
- USB ports: 1× USB 3.1 Gen1 (Type-A)
- Serial interfaces: RS-232/422/485 in 1x 2x6 terminal block RS-485
- AC/DC input: DC
- Power input: 24–110 V
- Power consumption: 30.48 W
Technical specifications
| CPU generation | Amston Lake(optional) |
|---|---|
| Processor | Intel Atom® x7433RE Quad-Core 1.5 GHz, 9W TDP(optional)NXP i.MX8M Plus with Quad core ARM Cortex-A53(optional) |
| Memory | 8 GB LPDDR4L-4266 saldata (16 GB su richiesta)(optional)8 GB LPDDR5 saldata (16 GB su richiesta)(optional) |
|---|
| Storage | 1× M.2 2242 M-Key (PCIe Gen3, solo NVMe)(M.2-M)64 GB di default, fino a 256 GB(eMMC) |
|---|
| Video outputs | 1× HDMI 1.4 (1920×1080 @ 60 Hz)(1920x1080) |
|---|
| Ethernet ports | 3x Ethernet Link LEDs (Green)3× GbE (M12 X-coded) |
|---|---|
| USB ports | 1× USB 3.1 Gen1 (Type-A) |
| Serial interfaces | RS-232/422/485 in 1x 2x6 terminal block RS-485 |
| Digital I/O | 4× DI + 4× DO (1× morsettiera 2×6)(terminal-block · out)4× DI + 4× DO (1× morsettiera 2×6)(terminal-block · in) |
| Other I/O | 1x Reset button |
| Wireless | 5GWi-FiGPS/GNSS |
|---|
| AC/DC input | DC |
|---|---|
| Power input | 24–110 V |
| Power consumption | 30.48 W |
| Mounting | Wall Mount |
|---|---|
| Weight | 2.025 kg |
| Chassis material | alluminio |
| Cooling | Fanless |
|---|---|
| Storage temperature | -40–85 °C |
| MTBF | 250350 h(GB · Telcordia) |
| Certified market sectors | Railway |
|---|---|
| Certifications | EN 50155EN 50121 |
| Operating systems | Linux |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
Family configurations
The order codes of this family: the sheet applies to all of them, the detail of each configuration is in the datasheet.
| Configuration (PN) |
|---|
| AVA-1000/x7433RE/8G/64G,CC |
