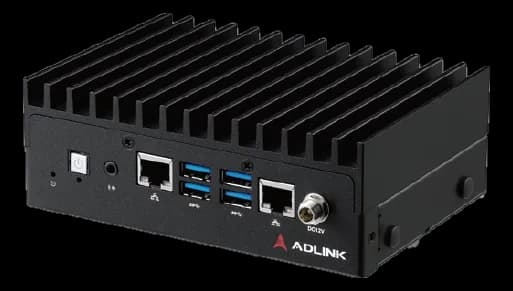

DLAP-211-NanoADLINK edge AI computer with built-in Wi-Fi and Bluetooth
- Manufacturer
DLAP-211-Nano is an ADLINK edge AI platform for data collection and inference nodes: it installs in a rack, on a VESA bracket or on a wall, according to the space available.
The panel carries dedicated power, reset and recovery buttons, while operation is declared up to 5000 m of altitude. Power input is 12 V direct current, with a supplied 60 W power adapter.
At a glance
- CPU class: ARM Cortex-A57
- Processor: 4-core ARM® Cortex-A57
- Storage: 16 GB eMMC 5.1
- USB ports: 4× USB 3.0 (Type-A)
- Serial interfaces: COM port (DB-9 connector) RS-232/422/485 (software programmable)
Technical specifications
| CPU class | ARM Cortex-A57 |
|---|---|
| Processor | 4-core ARM® Cortex-A57 |
| Storage | 16 GB eMMC 5.11× SD |
|---|
| Video outputs | HDMI 2.0 with lock1× lockable(HDMI) |
|---|
| Ethernet ports | 2× GbE |
|---|---|
| USB ports | 4× USB 3.0 (Type-A) |
| Serial interfaces | COM port (DB-9 connector) RS-232/422/485 (software programmable)1× COM RS-232/422/485 |
| Audio | Mic-in, line-out |
| CAN bus | 1× CAN 2.0b |
| Other I/O | 1x power · 1x reset · 1x recovery |
| Wireless | Wi-FiBluetooth |
|---|
| Expansion | 1× Mini PCIe |
|---|
| AC/DC input | DC |
|---|---|
| Power input | DC V |
| Mounting | VESA MountWall MountDIN Rail Mount(optional) |
|---|---|
| Dimensions | 148 × 52 × 120 mm |
| Weight | 1.725 kg(net) |
| Operating temperature | -20–70 °C |
|---|---|
| Storage temperature | -40–85 °C |
| Operating altitude | 5000 m |
| Certifications | FCCCEUL |
|---|
| Operating systems | Linux |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
