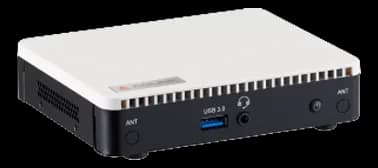

EMP-100Ultra-compact embedded computer with dual HDMI output
- Manufacturer
- Configurations
- 1 available configurations
EMP-100 is a small-format ADLINK embedded computer, conceived for tight spaces inside a cabinet or behind a panel: 130 × 28 × 107 mm for 0.55 kg, optional VESA mounting and CE and FCC markings.
DDR4 SO-DIMM 3200 memory reaches 16 GB, with an M.2 2280 SSD up to 1 TB and an optional 2.5" SATA bay; the I/O includes one GbE port, three USB 3.2 Gen 1 Type-A, an audio jack, an optional RS-232 serial port and an M.2 E-key slot for Wi-Fi/Bluetooth, with TPM 2.0, watchdog and DC input.
At a glance
- Memory: 1× SO-DIMM DDR4 260-pin, SDRAM 3200 MHz, fino a 16 GB
- RAM type: DDR4
- Maximum RAM: 16 GB
- USB ports: 3× USB 3.2 Gen1
- AC/DC input: DC
Technical specifications
| Memory | 1× SO-DIMM DDR4 260-pin, SDRAM 3200 MHz, fino a 16 GB |
|---|---|
| RAM type | DDR4 |
| Maximum RAM | 16 GB |
| Storage | 1× M-Key 2280 (PCIe x1 + SATA3) per SSD, fino a 1 TB; 1× 2.5" SSD/HDD SATA 6 Gbps (opzionale)(optional · 2.5-SATA) |
|---|
| Video outputs | 1x HDMI 1.4, max. resolution up to1x HDMI 2.0b, max. resolution up to |
|---|
| Ethernet ports | Realtek RTL8111H, fino a 1000/100/10 Mbit/s1× GbE (RJ-45) |
|---|---|
| USB ports | 3× USB 3.2 Gen15 Gbps with 1600 mA power and OCP protection3× USB 3.2 Gen1 (Type-A) |
| Serial interfaces | 1× RS-232 (opzionale)(optional) |
| Audio | 1× jack headset 3,5 mm (CTIA)1× headphone(line-out) |
| Expansion | 1× M.2 E-Key 2230 (PCIe + USB 2.0) per modulo Wi-Fi/Bluetooth opzionale(optional) |
|---|
| AC/DC input | DC |
|---|---|
| Power input | DC V |
| Mounting | VESA Mount(optional) |
|---|---|
| Dimensions | 130 × 28 × 107 mm |
| Weight | 0.55 kg |
| Storage temperature | -10–55 °C |
|---|
| Certifications | FCCCE |
|---|
| Operating systems | WindowsLinuxWindows 10 IoT |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
Family configurations
The order codes of this family: the sheet applies to all of them, the detail of each configuration is in the datasheet.
| Configuration (PN) |
|---|
| EMP-100 VESA KIT FOR VERINT_10 |
