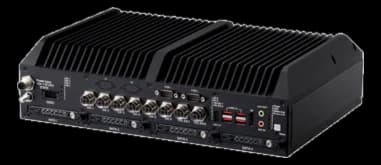

AVA-7200Fanless railway embedded computer for rack or wall, EN 50155 certified
- Manufacturer
- Configurations
- 8 available configurations
AVA-7200 is a fanless embedded computer for on-board railway installations, mountable in a rack or on a wall: EN 50155 and EN 50121 certifications, shock and vibration to EN 61373, RoHS and REACH compliance.
The 13th generation Intel Core i5/i7 CPU (35–45 W TDP) works with DDR5 up to 64 GB; storage combines one M.2 NVMe and up to four removable SATA bays with a lock, the network provides four 2.5GbE ports (PoE optional) and two 10GbE on M12 X-coded connectors, with two DB-9 serial ports, isolated 24–110 VDC DIO and a 200 W power supply; Linux and Windows 10 IoT are supported.
At a glance
- CPU generation: 13th gen (Raptor Lake)
- Processor: 13th Gen Intel® Core™ mobile processors (formerly Raptor Lake-P)
- CPU TDP: 35–45 W
- Memory: 2 canali di memoria (1DPC)
- RAM type: DDR5
Technical specifications
| CPU generation | 13th gen (Raptor Lake) |
|---|---|
| Processor | 13th Gen Intel® Core™ mobile processors (formerly Raptor Lake-P)Intel® Core™ i5-13600HRE, 4P+8E core/16T, 18MB Cache, 45W (35W cTDP)(optional)Intel® Core™ i7-13800HRE, 6P+8E core/20T, 24MB Cache, 45W (35W cTDP)(optional) |
| CPU TDP | 35–45 W |
| Memory | 2 canali di memoria (1DPC) |
|---|---|
| RAM type | DDR5 |
| Maximum RAM | 64 GB |
| Storage | 1× M.2 M-Key 2280 (PCIe Gen3 x4, NVMe)1× M.2 M-Key 2280 (PCIe Gen3 x4) per SSD NVMeFino a 4× vani SATA removibili con serratura esterna(SSD/HDD)4× cassetto 2.5" SATA removibile con serratura (opzionale)(optional) |
|---|
| Video outputs | 1× DisplayPort (da CPU)HDMI 2.0a/b, fino a 4096×2160 @ 60 Hz(4096x2160) |
|---|
| Ethernet ports | 4× 2.5GbE (M12 X-coded femmina), PoE2× 10GbE (M12 X-coded femmina)4× 2.5GbE (M12 X-coded femmina), PoE via opzione BOM(optional) |
|---|---|
| USB ports | 4× USB 3.2 Gen2 (Type-A)1× USB 2.0 (Type-A)4× USB 3.2 Gen2x1 (Type-A) |
| Serial interfaces | 2× RS-485/422/232 (DB-9) |
| Digital I/O | 4× DI + 4× DO (1× morsettiera), 24-110 VDC(in)4× DI + 4× DO (1× morsettiera), 24-110 VDC(out)4× DI + 4× DO (1× morsettiera), DC 24-110 V, isolamento 1,5 kVDC(terminal-block · in)4× DI + 4× DO (1× morsettiera), DC 24-110 V, isolamento 1,5 kVDC(terminal-block · out) |
| CAN bus | Opzionale via modulo mPCIe, ritaglio predisposto sul frontale(miniPCIe-module · optional) |
| Other I/O | Power Button · Reset Button |
| Wireless | GPS/GNSS4G/LTE(optional) |
|---|
| Expansion | 1× slot mPCIe(Mini-PCIe) |
|---|
| AC/DC input | DC |
|---|---|
| Battery / UPS | CR2032X coincell battery by default; Gold capacitor(optional) |
| Mounting | Wall MountRack Mount |
|---|---|
| Weight | 9.4 kg |
| Cooling | Fanless |
|---|---|
| Operating temperature | -20–70 °C |
| Storage temperature | -40–85 °C |
| MTBF | 216865 h(GB · Telcordia) |
| Certified market sectors | Railway |
|---|---|
| Certifications | EN 50155REACHEN 50121RoHS |
| Operating systems | LinuxWindows 10 IoT |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
Family configurations
The order codes of this family: the sheet applies to all of them, the detail of each configuration is in the datasheet.
| Configuration (PN) |
|---|
| AVA-7200/5136/32G/A2000 |
| AVA-7200/5136/32G/A2000/POE,CC |
| AVA-7200/5136/32G/A2000/POE,CC_10 |
| AVA-7200/5136/64G,CC |
| AVA-7200/7138/64G,CC |
| AVA-7200/H7138/32G/A4500 |
| AVA-7200/H7138/64G/A4500 |
| AVA-7200/H7138/64G/A4500/CAN, CC |
