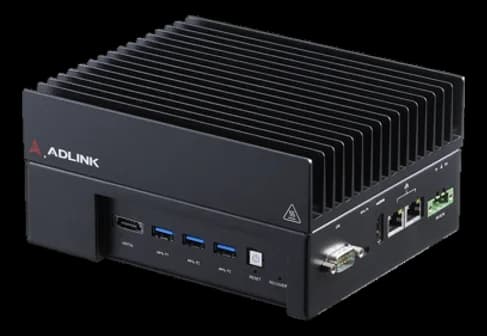

DLAP-401-XavierADLINK edge AI computer with a Volta GPU and 512 CUDA cores
- Manufacturer
DLAP-401-Xavier is an ADLINK edge AI platform for fixed wall installations: it runs inference on video streams and process data directly in the plant.
The Volta GPU integrates 64 Tensor Cores and the system memory is LPDDR4x. Operation is declared from -20 to 60 °C and up to 2000 m of altitude, with a 24 V direct current input and a 160 W power adapter.
At a glance
- AI module: NVIDIA Jetson TX2
- AI performance: Up to 40
- CPU class: ARM
- Processor: 8-core ARM® v8.2 64-bit
- Memory: 32GB LPDDR4x (su modulo) GB
Technical specifications
| AI module | NVIDIA Jetson TX2 |
|---|---|
| AI performance | Up to 40 |
| CPU class | ARM |
| Processor | 8-core ARM® v8.2 64-bit |
| Graphics | 512-core Volta™ GPU with 64 Tensor Cores |
| Tensor cores | 64 |
| CUDA cores | 512 |
| Memory | 32GB LPDDR4x (su modulo) GB |
|---|---|
| RAM type | LPDDR4x |
| Storage | M.2 key 224232GB eMMC 5.1 (su modulo)SSD, M.2 2242 B+M-Key, SATA, 256GB, 3.3V, 112 Layars, 550MB SR/480MB SW, TBW:681.8TB, MTBF>3MH, OP Temp: 0 to 70°C(M.2-B)SSD, M.2 2242 B+M-Key, SATA, 512GB, 3.3V, 112 Layars, 550MB SR/520MB SW, TBW:1363.6TB, MTBF>3MH, OP Temp: 0 to 70°C(M.2-B)SSD, M.2 2242 B+M-Key, NVMe PCIE Gen3 x2, 512GB, 3.3V, 3D TLC, 1650MB SR/1480MB SW, TBW:1186TB, MTBF>3MH, OP Temp: 0 to 70°C(M.2-B)M.2 2242, NVMe PCIe Gen 3x2 B+M Key 256GB, Operating Temperature: 0 to 70°C, Sequential : Read Up to 1700 MB/s, Write Up to 1250 MB/s(M.2-B) |
|---|
| Video outputs | 1× HDMI 2.0a (Type-A) |
|---|
| Ethernet ports | 2× GbE |
|---|---|
| USB ports | 1× USB 3.1 (Type-C), OTG3× USB 3.1 Gen1 (Type-A)3× USB 3.1 Gen1 |
| CAN bus | 1× CAN (DB-9 male)1× CAN 2.0b |
| Other I/O | 1x Power button · 1x Reset button · 1x Recovery button |
| Expansion | M.2 E-Key 2230, M.2 B-Key 3042 |
|---|
| AC/DC input | DC |
|---|---|
| Power input | DC V |
| Mounting | Wall Mount |
|---|---|
| Dimensions | 150 × 85 × 145 mm |
| Cooling | Fanless |
|---|---|
| Operating temperature | -20–60 °C |
| Storage temperature | -20–80 °C |
| Operating altitude | 2000 m |
| Certifications | CEFCCWEEE (2012/19/UE) |
|---|
| Operating systems | Linux |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
