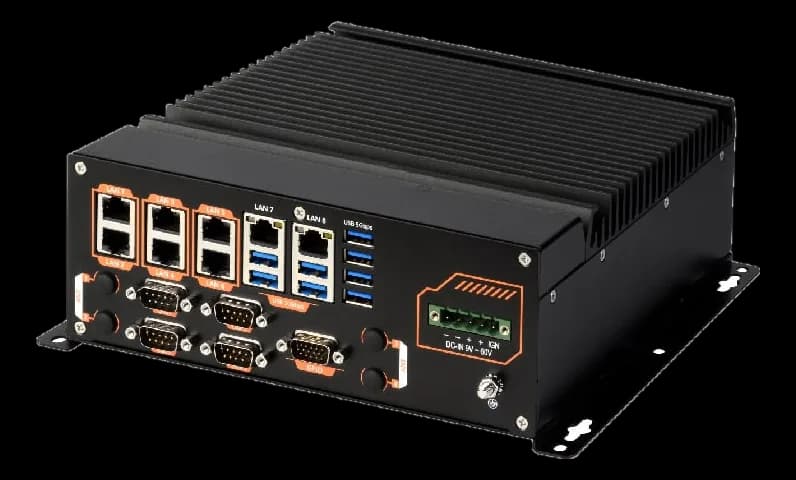

ABOX-5211PWall mount vehicle and railway embedded computer, EN 50155 certified
- Manufacturer
ABOX-5211P is a fanless embedded computer for installations on vehicles and rolling stock: wall mount, DC power input with ignition management, an optional 10-minute internal battery and EN 50155, E-Mark and MIL-STD-810 certifications.
The 10th generation Intel platform (Q470E chipset) spans from Celeron to Core i9 and Xeon, with DDR4 up to 64 GB on two SO-DIMMs; on board are four isolated RS-232/422/485 serial ports, isolated digital I/O with 8 inputs and 4 outputs, PoE on four or eight RJ45 ports and Wi-Fi, 4G/LTE and 5G modules; Windows and Linux are supported.
At a glance
- CPU generation: 10th gen (Comet Lake)
- RAM type: DDR4
- Storage: Support SATA Raid 0/1
- USB ports: 4× USB 3.2 (5 Gbps)
- Serial interfaces: 4× RS-232/422/485, isolate 1,5 kVrms (auto direction control)
Technical specifications
| CPU generation | 10th gen (Comet Lake) |
|---|---|
| Processor | Intel® Celeron® G5900TE (2M Cache 3.0GHz)(optional)10th Gen Intel® Core™ i9-10900TE (20M Cache 2.0GHz up to 4.5GHz)(optional)10th Gen Intel® Core™ i7-10700TE (16M Cache 2.0GHz up to 4.4GHz)(optional)10th Gen Intel® Core™ i5-10500TE (12M Cache 2.3GHz up to 3.7GHz)(optional)10th Gen Intel® Core™ i3-10100TE (6M Cache 2.3GHz up to 3.6GHz)(optional) |
| Chipset | Q470E |
| Memory | 2× SO-DIMM DDR4-2133, max 32 GB(2133 MHz)2× SO-DIMM DDR4-3200, max 64 GB(3200MHz)4–32 GB(DDR4 · 3200 MHz) |
|---|---|
| RAM type | DDR4 |
| Storage | Support SATA Raid 0/11× SATA DOM |
|---|
| Video outputs | max 4096×2304 @24Hz (HDMI 1.4)(4096x2304)2× DP + 1× VGA (triple display indipendente)(DisplayPort)max 4096×2340 @60Hz (DP 1.2)(4096x2340 · DisplayPort) |
|---|
| Ethernet ports | 8 x PoE Total Max.120W)4× PoE RJ45 (15.4 W per porta)8 x RJ45 Ports for GbE (Optional |
|---|---|
| USB ports | 4× USB 3.2 (5 Gbps)4× USB 3.04× USB 3.2 (10 Gbps) |
| Serial interfaces | 4× RS-232/422/485, isolate 1,5 kVrms (auto direction control) |
| Audio | 1× line-out |
| Digital I/O | 8× DI (5–60VDC) + 4× DO (5VDC, 100mA)(in)8× GPI + 4× GPO, isolati 1,5 kVrms(out)8× GPI + 4× GPO, isolati 1,5 kVrms(in)8× DI (5–60VDC) + 4× DO (5VDC, 100mA)(out) |
| Wireless | Wi-Fi4G/LTE5G |
|---|
| Expansion | 3× Mini-PCIe full-size + 1× half-size (2× SIM per 3G/LTE) |
|---|
| AC/DC input | DC |
|---|---|
| Ignition management | Vehicle Power Ignition for Variety Vehicle |
| Battery / UPS | Internal Battery Kit for 10 Mins Operating (Optional) Patent No. : M447854 - Build-in BatteryInternal Battery Kit for 10 Mins Operating (P/N: BAT-5200 kit, Operating Temp. Charging 0~45°C, Duscharging -20 ~ 60°C) * UPS backup time varies depending on actual overall system power consumption. |
| Mounting | Wall Mount |
|---|
| Cooling | Fanless |
|---|---|
| Operating temperature | -40–70 °C |
| Storage temperature | -40–80 °C |
| Certified market sectors | RailwayAutomotive |
|---|---|
| Certifications | CEFCCEN 50155MIL-STD-810E-Mark |
| Operating systems | LinuxWindows |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
