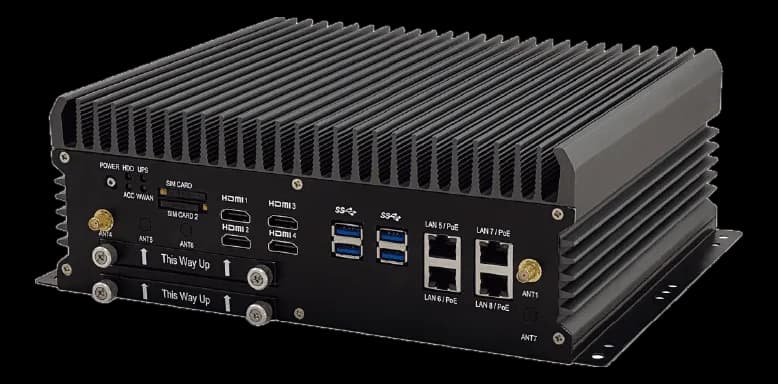

ABOX-5100AMD Ryzen wall mount vehicle embedded computer, EN 50155 certified
- Manufacturer
- Configurations
- 1 available configurations
ABOX-5100 is an aluminum embedded computer for wall mount on vehicles and rolling stock: DC power input with ignition management, an optional 10-minute internal battery and EN 50155, E-Mark and MIL-STD-810 certifications.
The quad-core AMD Ryzen V1807B APU with integrated Vega graphics drives up to four DisplayPort outputs; DDR4 reaches 32 GB on two SO-DIMMs, with two 2.5" SATA bays, eight GbE RJ45 ports, three RS-232/422/485 serial ports, digital I/O with 8 inputs and 4 outputs and Wi-Fi, 4G/LTE and GPS modules on Mini-PCIe; optional PoE up to 100 W.
At a glance
- Processor: AMD Ryzen™ V1807B Quad Core Soc (3.3~3.6GHZ)
- RAM type: DDR4
- Maximum RAM: 32 GB
- Storage: 2× bay 2.5″ SATA (HDD/SSD)
- USB ports: 4× USB 3.0
Technical specifications
| Processor | AMD Ryzen™ V1807B Quad Core Soc (3.3~3.6GHZ) |
|---|
| Memory | 2× SO-DIMM DDR4-2400, max 32 GB(2400 MHz)4–32 GB(DDR4) |
|---|---|
| RAM type | DDR4 |
| Maximum RAM | 32 GB |
| Storage | 2× bay 2.5″ SATA (HDD/SSD) |
|---|
| Video outputs | 4× DP(DisplayPort) |
|---|
| Ethernet ports | Intel i210AT x 2 to LAN Switch Marvell 88E6176-A1 x 22 x Switch Design (MAC x 2)8 x RJ45 GbE by |
|---|---|
| USB ports | 4× USB 3.0 |
| Serial interfaces | 3 x RS-232/422/485 (Optional Max4 x RS-232/422/485) |
| Audio | 1× line-in1× mic-in1× line-out |
| Digital I/O | 8× GPI + 4× GPO(in)8× GPI + 4× GPO(out) |
| CAN bus | CAN bus (scheda miniPCIe)(miniPCIe-module · optional) |
| PoE | PoE opzionale sulle 8 porte (max 100 W)(optional) |
| Wireless | GPS/GNSSWi-Fi4G/LTE3G/WCDMA |
|---|
| Expansion | 3× Mini-PCIe full-size |
|---|
| AC/DC input | DC |
|---|---|
| Power input | 9–48 V |
| Ignition management | Vehicle Power Ignition for Variety Vehicle |
| Battery / UPS | Internal Battery Kit for 10 Mins Operating (optional) *UPS backup time varies depending on actual overall system power consumption. |
| Mounting | Wall Mount |
|---|---|
| Dimensions | 226 × 95 × 260 mm |
| Weight | 5.22 kg |
| Chassis material | alluminio |
| Operating temperature | -40–70 °C |
|---|---|
| Storage temperature | -40–80 °C |
| Certified market sectors | RailwayAutomotive |
|---|---|
| Certifications | EN 50155E-MarkFCCCEMIL-STD-810 |
| Operating systems | WindowsLinux |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
Family configurations
The order codes of this family: the sheet applies to all of them, the detail of each configuration is in the datasheet.
| Configuration (PN) |
|---|
| ABOX-5100G1 |
