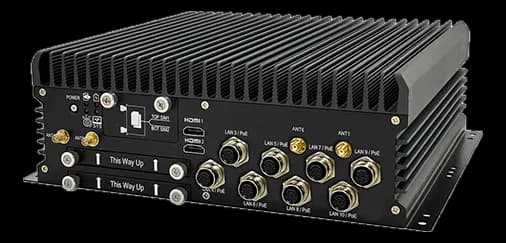

ABOX-5210G-M12XEmbedded computer with NVIDIA GTX 1650 GPU and networking on M12 connectors
- Manufacturer
ABOX-5210G-M12X is a wall mount embedded computer with a dedicated GPU and M12 connectivity, for environments subject to vibration and temperature swings: operating temperature runs from -40 to 70 °C.
Configurations offer 10th generation Intel CPUs from Core i3 to Core i9 and Xeon (Q470 or W480 chipset) with DDR4 up to 64 GB; the NVIDIA GeForce GTX 1650 GPU drives three DisplayPort and two HDMI outputs, the network provides eight M12 X-coded GbE ports (PoE up to 120 W as an alternative) and two GbE RJ45, with two removable SATA bays and three RS-232/422/485 serial ports.
At a glance
- CPU generation: 10th gen (Comet Lake)
- Memory: SO-DIMM DDR4, max 64 GB
- RAM type: DDR4
- Maximum RAM: 64 GB
- USB ports: 4× USB 3.2 Gen 1
Technical specifications
| CPU generation | 10th gen (Comet Lake) |
|---|---|
| Processor | Intel Gen10 Xeon W-1290TE (20M Cache, 2.0GHz up to 4.6GHz)(optional) |
| Chipset | W480Q470 |
| Graphics | NVIDIA GeForce GTX 1650 GPU |
| Memory | SO-DIMM DDR4, max 64 GB |
|---|---|
| RAM type | DDR4 |
| Maximum RAM | 64 GB |
| Storage | 2× SATA 2.5″ rimovibili(2.5-SATA) |
|---|
| Video outputs | 2× HDMI3× DP(DisplayPort) |
|---|
| Ethernet ports | 2× GbE RJ458× GbE M12 X-code8× PoE M12, mutuamente esclusive (max 120 W) |
|---|---|
| USB ports | 4× USB 3.2 Gen 1 |
| Serial interfaces | 3× RS-232/422/485 |
| Audio | 1× mic-in/line-out/line-in |
| Digital I/O | 8× DI + 4× DO(out)8× DI + 4× DO(in) |
| AC/DC input | DC |
|---|---|
| Power input | 9–48 V |
| Mounting | Wall Mount |
|---|---|
| Dimensions | 260 × 250 × 95 mm |
| Weight | 5.3 kg |
| Operating temperature | -40–70 °C |
|---|---|
| Storage temperature | -40–80 °C |
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
