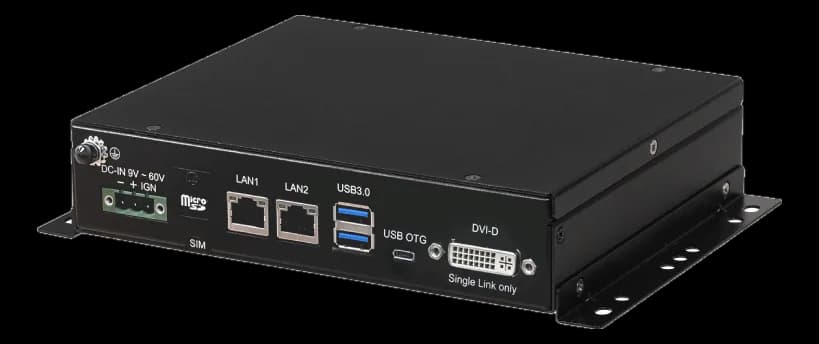

IBOX-500ARM embedded computer for vehicle and rail use, EN 50155 certified
- Manufacturer
IBOX-500 is a Sintrones embedded computer for on-vehicle use and remote stations: a 1 kg fanless steel wall mount chassis and EN 50155, E-Mark and MIL-STD-810 certifications.
The automotive NXP i.MX 8QuadXPlus SoC (AEC-Q100 Grade 3) at 1.2 GHz works with 4 GB of on-board LPDDR4, 32 GB of eMMC and microSD; the I/O includes one GbE port, one RS-232/422/485 serial port, digital I/O, three CAN/CAN FD ports and 4G/5G, Wi-Fi and GPS/GNSS radios on M.2 slots, with a short-circuit protected DC input and Linux.
At a glance
- Processor: NXP i.MX 8QuadXPlus Automotive SoC (AEC-Q100 Grade 3)
- RAM type: LPDDR4x
- Storage: MicroSD Card 64 / 128 / 256GB 3D TLC WT
- USB ports: 2× USB 3.2 (5 Gbps)
- Serial interfaces: 1× RS-232/422/485
Technical specifications
| Processor | NXP i.MX 8QuadXPlus Automotive SoC (AEC-Q100 Grade 3) |
|---|
| Memory | LPDDR4 4 GB onboard(LPDDR4x) |
|---|---|
| RAM type | LPDDR4x |
| Storage | MicroSD Card 64 / 128 / 256GB 3D TLC WTOnboard eMMC 5.1 32 GB |
|---|
| Video outputs | 1× DVI-D single-link (pinout proprietario SINTRONES)1 x Single Link (SINTRONES proprietary pin define)(DVI) |
|---|
| Ethernet ports | 1× GbE RJ45 |
|---|---|
| USB ports | 2× USB 3.2 (5 Gbps)1× USB 2.0 OTG |
| Serial interfaces | 1× RS-232/422/485 |
| Digital I/O | 8× DI (5–60VDC) + 4× DO (5VDC, 100mA)(in)8× DI (5–60VDC) + 4× DO (5VDC, 100mA)(out) |
| CAN bus | 3× CAN/CAN FD |
| Wireless | Wi-FiGPS/GNSS4G/LTE5G |
|---|
| Expansion | 1× M.2 3042/3052 Key B (WWAN) + 1× nano-SIM1× M.2 Key A-E (Wi-Fi)1× M.2 2242 Key B (GPS) |
|---|
| AC/DC input | DC |
|---|---|
| Power input | 9–60 V |
| Ignition management | Vehicle Power Ignition for Variety Vehicle |
| Mounting | Wall Mount |
|---|---|
| Dimensions | 150 × 43 × 214 mm |
| Weight | 1 kg |
| Chassis material | acciaio |
| Cooling | Fanless |
|---|---|
| Operating temperature | -40–70 °C |
| Storage temperature | -40–80 °C |
| Certified market sectors | RailwayAutomotive |
|---|---|
| Certifications | EN 50155FCCCEE-MarkMIL-STD-810 |
| Operating systems | Linux |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
