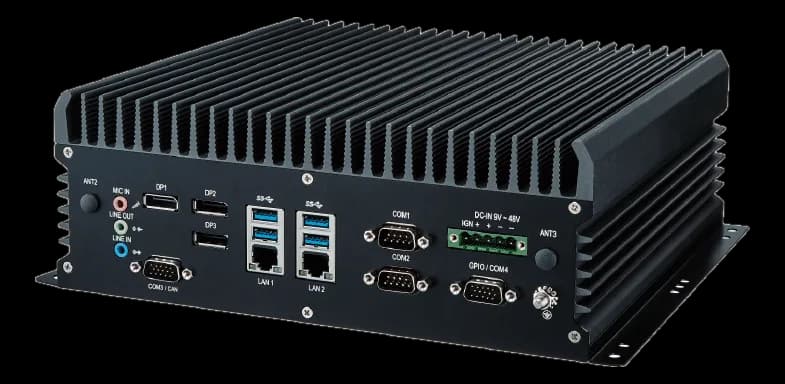

ABOX-5200Fanless embedded computer for vehicles and railway, EN 50155 certified
- Manufacturer
ABOX-5200 is a fanless embedded computer for on-board vehicle and railway installations: aluminum wall mount chassis, 9–48 VDC power input with ignition management, an optional 10-minute internal battery and EN 50155, E-Mark and MIL-STD-810 certifications.
It carries 8th generation Intel CPUs (Core i7-8700T, i5-8500T, i3-8100T or Celeron G4900T) with up to 32 GB of DDR4, two hot-swap SATA bays in RAID 0/1/5 plus mSATA, three DisplayPort outputs, up to 10 GbE ports (8 with PoE, max 100 W) and three COM ports; expansion on three Mini-PCIe and one M.2 2230.
At a glance
- CPU generation: 8th gen (Coffee Lake)
- Processor: Intel 8th Gen Core i7-8700T / i5-8500T / i3-8100T / Celeron G4900T
- RAM type: DDR4
- Maximum RAM: 32 GB
- Storage: 1× mSATA
Technical specifications
| CPU generation | 8th gen (Coffee Lake) |
|---|---|
| Processor | Intel 8th Gen Core i7-8700T / i5-8500T / i3-8100T / Celeron G4900T |
| Graphics | Intel® UHD Graphics 630 |
| Memory | 2× SO-DIMM DDR4-2400, max 32 GB(2400 MHz)4–32 GB(DDR4) |
|---|---|
| RAM type | DDR4 |
| Maximum RAM | 32 GB |
| Storage | 1× mSATA2× SATA hot-swap, RAID 0/1/5 |
|---|
| Video outputs | 3× DP(DisplayPort) |
|---|
| Ethernet ports | 10 x Gigabit Ethernet (Optional for1× GbE (i219-LM), iAMT 9.5 solo con i5/i7, PXE/WoL9× Intel i210-AT10 x RJ45 Ports for GbE (Optional for M12 connector8 x PoE total Max. 100W) |
|---|---|
| USB ports | 4× USB 3.0 |
| Serial interfaces | 3× COM |
| Audio | 1× mic-in1× line-out1× line-in |
| Digital I/O | 8× GPI + 4× GPO(out)8× GPI + 4× GPO(in) |
| CAN bus | CAN bus (scheda miniPCIe)(miniPCIe-module · optional) |
| PoE | 8× PoE (max 100 W totali) |
| Wireless | 3G/WCDMAGPS/GNSS4G/LTEBluetoothWi-Fi |
|---|
| Expansion | 3× Mini-PCIe full-size + 1× M.2 2230 Key A-E (2× SIM per 3G/LTE)3× Mini-PCIe full-size |
|---|
| AC/DC input | DC |
|---|---|
| Power input | 9–48 V |
| Ignition management | Vehicle Power Ignition for Variety Vehicle |
| Battery / UPS | Internal Battery Kit for 10 Mins Operating (optional) *UPS backup time varies depending on actual overall system power consumption. |
| Mounting | Wall Mount |
|---|---|
| Dimensions | 250 × 95 × 260 mm |
| Weight | 5.19 kg |
| Chassis material | alluminio |
| Cooling | Fanless |
|---|---|
| Operating temperature | -40–70 °C |
| Storage temperature | -40–80 °C |
| Certified market sectors | AutomotiveRailway |
|---|---|
| Certifications | EN 50155CEE-MarkMIL-STD-810FCC |
| Operating systems | WindowsLinux |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
