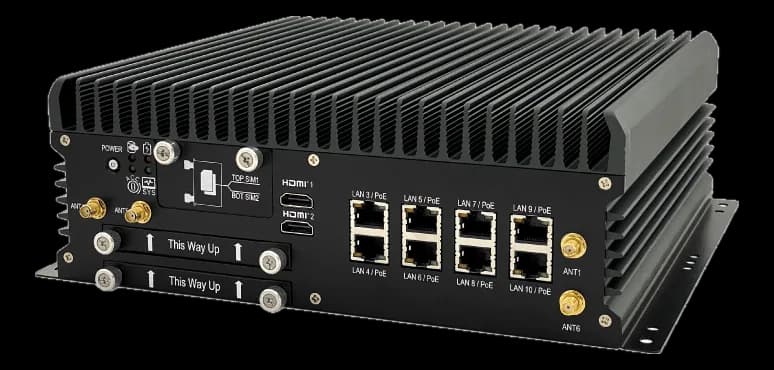

ABOX-5210GFanless embedded computer with NVIDIA GPU up to GTX 1660
- Manufacturer
ABOX-5210G is a fanless embedded computer with a dedicated NVIDIA GeForce GPU up to GTX 1660, for vision and graphics processing applications in environments with temperature swings from -40 to 70 °C.
The 10th generation Intel platform offers Core i9 or Xeon CPUs; storage uses two hot-swap SATA bays in RAID 0/1/5, the network reaches ten GbE RJ45 ports with PoE and M12 connector options, expansion provides two full-size Mini-PCIe and one M.2 E-Key slot; 9–48 VDC power input and an integrable 4G/LTE module.
At a glance
- CPU generation: 10th gen (Comet Lake)
- Processor: 10th Generation Intel® Core™ i9 Processor/Intel® Xeon® Processor
- Storage: 2× SATA hot-swap, RAID 0/1/5
- Expansion: 2× Mini-PCIe full-size + 1× M.2 2230/3030 Key A-E
- AC/DC input: DC
Technical specifications
| CPU generation | 10th gen (Comet Lake) |
|---|---|
| Processor | 10th Generation Intel® Core™ i9 Processor/Intel® Xeon® Processor |
| Graphics | NVIDIA® GeForce up to GTX 1660 GPU |
| Storage | 2× SATA hot-swap, RAID 0/1/5 |
|---|
| Ethernet ports | 8× PoE8 x M12 connectors)10 x GbE RJ45 (Optional |
|---|
| Wireless | 4G/LTE |
|---|
| Expansion | 2× Mini-PCIe full-size + 1× M.2 2230/3030 Key A-E |
|---|
| AC/DC input | DC |
|---|---|
| Power input | 9–48 V |
| Cooling | Fanless |
|---|---|
| Operating temperature | -40–70 °C |
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
