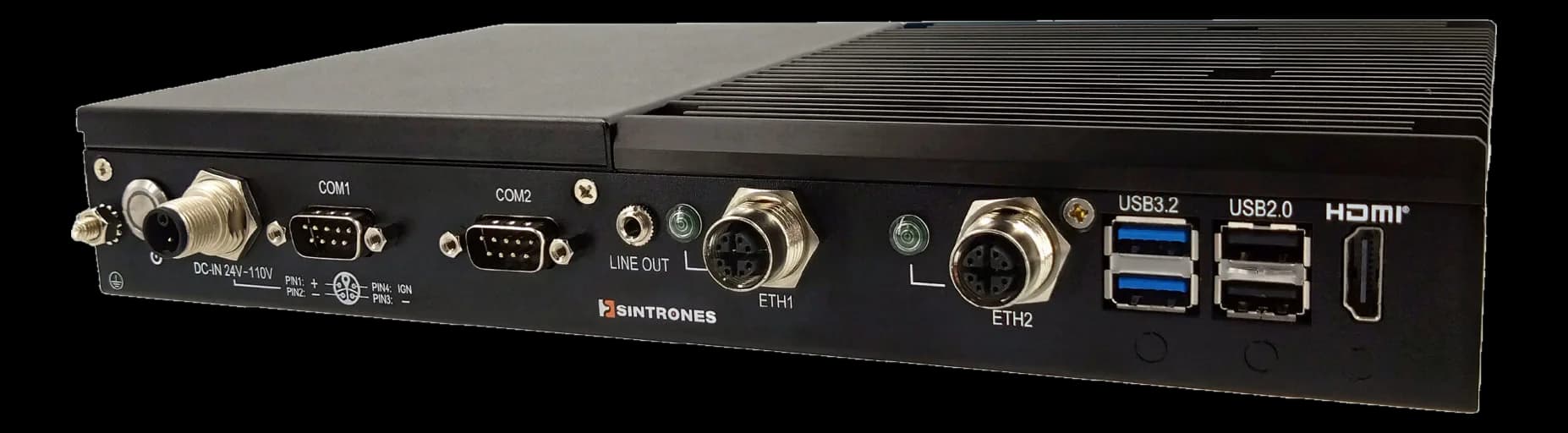

RBOX-1001-M12XEN 50155 certified fanless embedded computer
- Manufacturer
RBOX-1001-M12X is a fanless Sintrones embedded computer for on-train use and special vehicles: an aluminum chassis for rack or wall mounting, with EN 50155, EN 45545 fire, E-Mark and MIL-STD-810 certifications.
The Intel Atom x platform reaches 8 cores, with DDR5 from 8 to 16 GB and an M.2 NVMe SSD; two 2.5GbE ports on M12 X-code connectors sit alongside two RS-232/422/485 serial ports, digital I/O, Wi-Fi, GPS/GNSS and a WWAN slot with dual nano SIM, while the DC input is protected against overcurrent, overvoltage, transients and reverse polarity.
At a glance
- CPU generation: Amston Lake
- Memory: 1 x DDR5-4800 SO-DIMM up to 16 GB
- RAM type: DDR5
- Maximum RAM: 16 GB
- USB ports: 2× USB 2.0
Technical specifications
| CPU generation | Amston Lake |
|---|---|
| Processor | Intel Atom® x7433RE 4-core processor up to 3.4 GHz(optional)Intel Atom® x7835RE 8-core processor up to 3.6 GHz(optional) |
| Graphics | Processor-integrated GPU - Intel® UHD Graphics |
| Memory | 1 x DDR5-4800 SO-DIMM up to 16 GB8–16 GB(DDR5) |
|---|---|
| RAM type | DDR5 |
| Maximum RAM | 16 GB |
| Storage | 1× M.2 2280 Key M (SSD NVMe)(M.2-M) |
|---|
| Video outputs | 1× HDMI 2.1 (max 3840×2160 @60Hz)(3840x2160) |
|---|
| Ethernet ports | 2× 2.5GbE M12 X-code (Intel I226-IT) |
|---|---|
| USB ports | 2× USB 2.02× USB 3.2 |
| Serial interfaces | 2× RS-232/422/485 |
| Audio | 1× line-out |
| Digital I/O | 8× DI (5–48VDC) + 4× DO (12VDC, 100mA)(out)8× DI (5–48VDC) + 4× DO (12VDC, 100mA)(in) |
| Wireless | GPS/GNSSWi-Fi |
|---|
| Expansion | 1× M.2 2230 Key E (Wi-Fi/BT)1× M.2 3042/3052 Key B (WWAN, dual nano-SIM) |
|---|
| AC/DC input | DC |
|---|---|
| Supply voltage | 24–110 V DC |
| Battery / UPS | Removable top cover for RTC coin cell battery |
| Mounting | Rack MountWall Mount |
|---|---|
| Dimensions | 165 × 43 × 285 mm |
| Weight | 2.28 kg |
| Chassis material | Aluminum |
| Cooling | Fanless |
|---|---|
| Operating temperature | -40–75 °C |
| Storage temperature | -40–80 °C |
| Certified market sectors | RailwayAutomotive |
|---|---|
| Certifications | CEE-MarkEN 45545 fireEN 50155FCCMIL-STD-810UKCA |
| Operating systems | LinuxWindows 11 IoT |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
