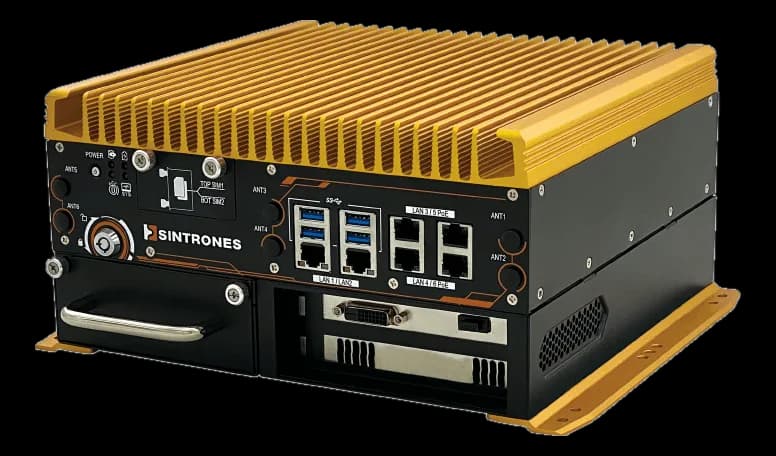

EBOX-7000Wall mount in-vehicle embedded computer, EN 50155 certified
- Manufacturer
EBOX-7000 is a Sintrones embedded computer for on-vehicle use and field stations: a wall mount aluminum chassis and EN 50155, E-Mark and MIL-STD-810 certifications for rail, road and environments subject to vibration.
The Intel platform reaches the Core i7-9700TE with DDR4 up to 64 GB and two hot-swap 2.5" bays with RAID 0/1/5; on board are six RJ45 Ethernet ports with PoE up to 100 W (optional), four RS-232/422/485 serial ports, 4G/LTE, 5G, Wi-Fi and GPS/GNSS radios, and 9–48 VDC power input with ignition control and TPM 2.0.
At a glance
- CPU generation: 9th gen (Coffee Lake-R)
- Processor: Intel Gen9 Core i7-9700TE (12M Cache 1.8GHz up to 3.8GHz)
- RAM type: DDR4
- Maximum RAM: 64 GB
- Storage: 2× bay 2.5″ SATA hot-swap (HDD/SSD), RAID 0/1/5; accesso esterno via USB 3.2 Gen 1x1 da rimossi
Technical specifications
| CPU generation | 9th gen (Coffee Lake-R) |
|---|---|
| Processor | Intel Gen9 Core i7-9700TE (12M Cache 1.8GHz up to 3.8GHz) |
| Graphics | Intel® UHD Graphics 630 for i7/i5/i3, Intel® UHD Graphics 610 for G5900T |
| Memory | 2× SO-DIMM DDR4-2400/2666, max 64 GB(2400/2666 MHz)4–32 GB(DDR4 · 2933 MHz) |
|---|---|
| RAM type | DDR4 |
| Maximum RAM | 64 GB |
| Storage | 2× bay 2.5″ SATA hot-swap (HDD/SSD), RAID 0/1/5; accesso esterno via USB 3.2 Gen 1x1 da rimossi1× M.2 2280 Key M (SSD NVMe e SATA)(M.2-M) |
|---|
| Video outputs | 1× DVI-D single-link (senza video analogico)1 x HDMI +1× DVI-I single-link (senza video analogico)4096×2304 @60Hz (DP 1.2), 4096×2304 @24Hz (HDMI 1.4b)(4096x2304 · DisplayPort)4096×2304 @60Hz (DP 1.2), 4096×2304 @24Hz (HDMI 1.4b)(4096x2304)4096×2304 @24Hz(4096x2304 · HDMI)1 x DP +(DisplayPort) |
|---|
| Ethernet ports | 5× Intel i210-AT6 x RJ45 GbE (optional1× GbE (i219), iAMT 9.5 solo con i5/i7, PXE/WoL |
|---|---|
| USB ports | 4× USB 3.2 Gen 1x1 |
| Serial interfaces | 4× RS-232/422/485 (auto direction control) |
| Audio | 1× line-out1× mic-in1× line-in |
| Digital I/O | 8× DI (5–48VDC) + 4× DO (5VDC, 100mA)(out)8× DI (5–48VDC) + 4× DO (5VDC, 100mA)(in) |
| CAN bus | CAN bus (modulo miniPCIe)(miniPCIe-module · optional) |
| PoE | 4× PoE (max 100 W) |
| Wireless | 4G/LTEGPS/GNSSWi-Fi5G |
|---|
| Expansion | 1× M.2 2230 Key A-E + 1× M.2 3042 Key B (WWAN, 2× slot SIM)2× Mini-PCIe full-sizeriser con 1× PCIe 3.0 x16 (1× uscita ATX 6 pin)(PCIe-x16) |
|---|
| AC/DC input | DC |
|---|---|
| Power input | 9–48 V |
| Ignition management | Vehicle Power Ignition for Variety Vehicle |
| Battery / UPS | Internal Battery Kit for 10 Mins Operating (Optional and cannot be installed with PoE module) |
| Mounting | Wall Mount |
|---|---|
| Dimensions | 250 × 137 × 260 mm |
| Weight | 7.6 kg |
| Chassis material | alluminio |
| Operating temperature | -40–70 °C-20–60 °C |
|---|---|
| Storage temperature | -40–80 °C |
| Certified market sectors | AutomotiveRailway |
|---|---|
| Certifications | EN 50155RoHSFCCE-MarkMIL-STD-810CE |
| Operating systems | WindowsLinux |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
