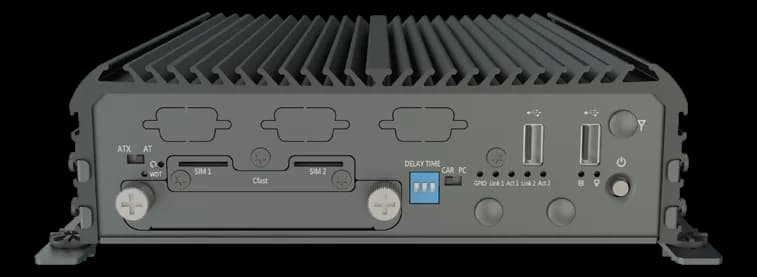

RCO-3400Industrial embedded computer
- Manufacturer
RCO-3400 is an embedded computer under the Premio brand.
At a glance
- CPU generation: 7th gen (Kaby Lake)
- Memory: 1x 260-Pin DDR4 1866/2133MHz SODIMM. Max. up to 16GB
- RAM type: DDR4
- Maximum RAM: 16 GB
- Storage: 1× 2.5" SATA HDD bay interno · 1× 2.5" SATA HDD bay estraibile · 1× mSATA (condiviso con 1× Mini PCI Express) · 1× CFast (condiviso con 1× mSATA)
Technical specifications
| CPU generation | 7th gen (Kaby Lake) |
|---|---|
| Chipset | SoC |
| Security & watchdog | Watchdog software programmabile 1~255 sec. (System Reset) |
| Memory | 1x 260-Pin DDR4 1866/2133MHz SODIMM. Max. up to 16GB |
|---|---|
| RAM type | DDR4 |
| Maximum RAM | 16 GB |
| Storage | 1× 2.5" SATA HDD bay interno · 1× 2.5" SATA HDD bay estraibile · 1× mSATA (condiviso con 1× Mini PCI Express) · 1× CFast (condiviso con 1× mSATA) |
|---|---|
| RAID | RAID 5RAID 0RAID 1 |
| Number of displays | 3 |
|---|---|
| Video outputs | 2× DisplayPort + 1× VGA |
| Ethernet ports | 2× RJ45 GbE (Intel® I219LM, Intel® I210-AT), Wake-on-LAN e PXEModulo 4-port GbE opzionale con chipset Intel® I210-AT, connettore RJ-45 o M12(optional) |
|---|---|
| USB ports | 4× USB 3.0, 2× USB 2.0 |
| Serial interfaces | 2× RS-232/422/485 · 3× RS-232/422/485 (internal) |
| Audio | 1× Mic-in, 1× Line-out · codec Realtek ALC888S |
| Digital I/O | 8× DI, 8× DO (isolati) |
| PoE | Opzione PoE sul modulo 4-port GbE (RJ-45 o M12)(optional) |
| Expansion | 2× Full-size Mini PCIe |
|---|
| AC/DC input | DC |
|---|---|
| Power input | 9~50VDC · modo AT/ATX · 3-pin Terminal Block |
| Ignition management | Power Ignition Management |
| Mounting | Wall MountDIN Rail Mount(optional) |
|---|---|
| Dimensions | 192 × 197 × 57.6 mm (W×D×H) |
| Chassis material | alluminio estruso con metallo heavy duty |
| Cooling | Fanless |
|---|---|
| Operating temperature | −40~70 |
| Storage temperature | -40–85 °C |
| Certifications | CEFCC |
|---|
| Operating systems | WindowsLinux |
|---|
| Ordering variants | RCO-3400-7300U · RCO-3400-7100U · RCO-3400-4L-7300U · RCO-3400-4L-7100U · RCO-3400-4L-M12-7300U · RCO-3400-4L-M12-7100U · RCO-3400-4P-7300U · RCO-3400-4P-7100U · RCO-3400-4P-M12-7300U · RCO-3400-4P-M12-7100U |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
