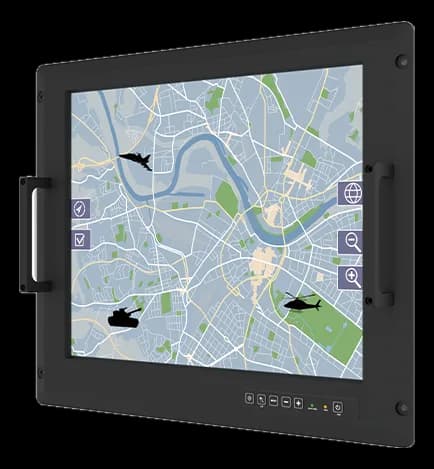

R19IT3S-RKA3ML19" rackmount rugged panel PC with a MIL-DTL-38999 power connector
- Manufacturer
R19IT3S-RKA3ML is a Winmate rugged panel PC in rack format for control rooms, cabinets and plant panels, where the terminal works continuously alongside the power electronics.
The axes that set it apart are the CPU frequency from 2.4 to 4.4 GHz and the environmental tolerance, with humidity from 10 to 95 % and storage from -30 to 70 °C. Electromagnetic compatibility is tested to MIL-STD-461.
At a glance
- CPU class: Intel Core i3/i5/i7/i9
- CPU generation: 11th gen (Tiger Lake)
- CPU frequency: 2.4–4.4 GHz
- TPM: TPM 2.0
- Memory: 4GB (Default) GB
Technical specifications
| CPU class | Intel Core i3/i5/i7/i9 |
|---|---|
| CPU generation | 11th gen (Tiger Lake) |
| Processor | Intel Core i5-1145G7 2.6GHz (up to 4.4GHz)(optional) |
| CPU frequency | 2.4–4.4 GHz |
| TPM | TPM 2.0 |
| Memory | 4GB (Default) GB |
|---|
| Storage | 128GB, up to 2TB |
|---|
| Display size | 19 ″ |
|---|---|
| Resolution | 1280x1024 SXGA |
| Brightness | Up to 399 standard cd/m² |
| Touchscreen | Resistive(optional) |
| Contrast ratio | 1000:1 |
| Aspect ratio | 5:4 |
| Viewing angle | 85,85,80,80 |
| Active area | 376.32 × 301.06 mm |
| Video outputs | 1× HDMI(optional) |
| OSD controls | 8 Key OSD Control Pad: Power, Brightness DOWN, Brightness UP, Night, Day, Auto / Manual, Reset, Lock |
| Ethernet ports | 2× RJ452× Intel® Ethernet Controller |
|---|---|
| USB ports | 2× USB 3.0 |
| Serial interfaces | 1× RS232/422/485 (Default RS232) (Default)1× RS232(optional) |
| AC/DC input | AC+DC |
|---|---|
| Power input | AC 100~240V, Universal, ±10%; DC 9~36V, ±10% (Optional) |
| Mounting | Rack MountPanel Mount(optional)VESA Mount(optional) |
|---|---|
| Dimensions | 482.6 × 399.3 × 71.4 mm |
| Chassis material | alluminio, metallo |
| Operating temperature | -20–60 °C |
|---|---|
| Cooling | Fanless |
| Storage temperature | -30–70 °C |
| Certifications | MIL-STD-810MIL-STD-461FCCCE |
|---|
| Operating systems | Windows 10 IoTWindows 11 IoTLinux |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
