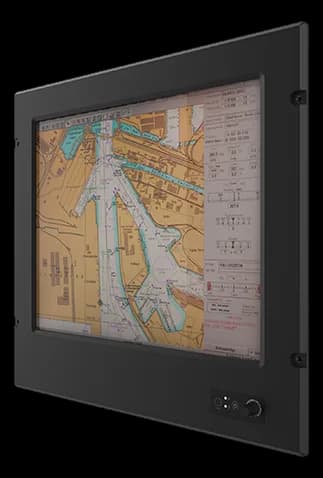

R19IT3S-MRA219" fanless panel PC with an IP66 front and an Intel Core i5/i7 CPU
- Manufacturer
R19IT3S-MRA2 is an industrial panel PC with a 19" display intended for integration on cabinets and machinery, where an operator interface on a protected front surface is needed. The aluminum and metal chassis with panel or VESA mounting allows fixed installation in production environments.
Fanless construction removes moving parts and operates over a 5~95 % humidity range. The wide-range 9~36 V DC power input extends its compatibility with machine-side lines, with a declared consumption of 65 W.
At a glance
- CPU class: Intel Core i3/i5/i7/i9
- CPU frequency: 2.4–4.7 GHz
- Memory: 4GB (Default) GB
- Storage: 128GB (Default)
- Display size: 19 ″
Technical specifications
| CPU class | Intel Core i3/i5/i7/i9 |
|---|---|
| Processor | Intel Core i7-1165G7 2.8GHz (up to 4.7GHz)(optional) |
| CPU frequency | 2.4–4.7 GHz |
| Memory | 4GB (Default) GB |
|---|
| Storage | 128GB (Default)4TB(optional)512GB(optional)1TB(optional)2TB(optional)256GB(optional) |
|---|
| Display size | 19 ″ |
|---|---|
| Touchscreen | Resistive(default) |
| Brightness | Up to 399 standard cd/m² |
| Resolution | 1280x1024 SXGA |
| Contrast ratio | 1000:1 |
| Viewing angle | 85,85,80,80 |
| Active area | 376.32 × 301.06 mm |
| Video outputs | 1× HDMI (opzionale)(optional) |
| OSD controls | 1 x Power Button, 1 x Reset Button, 1 x The Dimming Knob |
| Ethernet ports | 2× 2.5GbE (RJ45)2× Intel Ethernet Controller |
|---|---|
| USB ports | 2× USB 3.0 |
| Serial interfaces | 4× RS-422/485, isolate (opzionale)(optional) |
| Audio | 2× speaker |
| Other I/O | 1 x Power Button · 1 x Reset Button |
| AC/DC input | DC |
|---|---|
| Power input | 9–36 V |
| Power consumption | 65 W |
| Mounting | VESA MountPanel Mount |
|---|---|
| Dimensions | 483 × 444 × 77.5 mm |
| Cutout dimensions | 429 × 396 mm |
| Weight | 9.6 kg |
| Chassis material | alluminio, metallo |
| IP rating | Front IP66 |
|---|---|
| Cooling | Fanless |
| Certifications | CEFCC |
|---|
| Operating systems | Windows 10 IoTWindows 11 IoT |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
