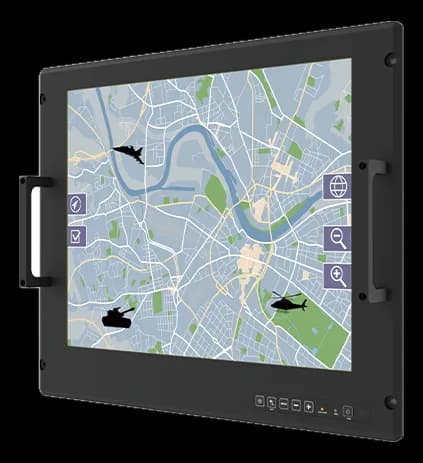

R19IT3S-MLA3FP19" fanless Panel PC with Intel Core i5, rack mount
- Manufacturer
R19IT3S-MLA3FP is an industrial Panel PC with a 19" display, designed for rack installation in automation and process control environments. The aluminium and metal frame and the fanless cooling reduce the parts subject to wear.
Two elements distinguish it: the -20~60 °C operating temperature range with -30~70 °C storage, which extends its use beyond conditioned environments, and the integrated light sensor for automatic brightness adjustment, useful where lighting conditions vary. AC power with a DC option widens the installation options.
At a glance
- CPU class: Intel Core i3/i5/i7/i9
- CPU frequency: 2.4–4.4 GHz
- TPM: TPM 2.0
- Memory: 4GB (Default) 8GB (Optional) 16GB (Optional) 32GB (Optional) GB
- Storage: 128GB, up to 2TB
Technical specifications
| CPU class | Intel Core i3/i5/i7/i9 |
|---|---|
| Processor | Intel Core i5-1145G7 2.6GHz (up to 4.4GHz)(optional) |
| CPU frequency | 2.4–4.4 GHz |
| TPM | TPM 2.0 |
| Memory | 4GB (Default) 8GB (Optional) 16GB (Optional) 32GB (Optional) GB |
|---|
| Storage | 128GB, up to 2TB |
|---|
| Display size | 19 ″ |
|---|---|
| Touchscreen | PCAP(default)PCAP(optional) |
| Brightness | Up to 399 standard cd/m² |
| Resolution | 1280x1024 SXGA |
| Contrast ratio | 1000:1 |
| Viewing angle | 85,85,80,80 |
| Active area | 376.32 × 301.06 mm |
| Video outputs | 1× HDMI(optional) |
| OSD controls | 8 Key OSD Control Pad: Power, Brightness DOWN, Brightness UP, Night, Day, Auto / Manual, Reset, Lock |
| Ethernet ports | 2× Intel Ethernet Controller2× RJ45 |
|---|---|
| USB ports | 2× USB 3.2 Gen 1 |
| Serial interfaces | 1× RS-232 (default)/422/485 |
| Sensors | Built-in Light Sensor for auto brightness control |
| AC/DC input | ACDC(optional) |
|---|---|
| Supply voltage | 100–240 V AC9–36 V DC(optional) |
| Mounting | Rack MountVESA Mount(optional) |
|---|---|
| Chassis material | Aluminum, metal |
| Operating temperature | -20–60 °C |
|---|---|
| Cooling | Fanless |
| Storage temperature | -30–70 °C |
| Certifications | CEFCC |
|---|
| Operating systems | LinuxWindows 10 IoTWindows 11 IoT |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
