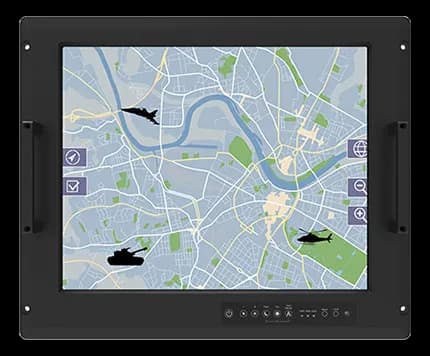

R19IT3S-MLA1-8919" rugged panel PC with an extended operating temperature
- Manufacturer
R19IT3S-MLA1-89 is a Winmate rugged panel PC for HMI and process control in shops where the temperature is not air conditioned, from technical rooms to processing areas. Network connectivity comprises one Ethernet port.
The axis that sets it apart is the extended operating range from -20 to 60 °C, alongside storage from -30 to 70 °C; power is DC with a 9~36 V input. CE and FCC certifications complete the picture.
At a glance
- CPU class: Intel Core i3/i5/i7/i9
- CPU generation: 11th gen (Tiger Lake)
- Memory: Up to 32GB SO-DIMM, DDR4 3200 MHz
- RAM type: DDR4
- Maximum RAM: 32 GB
Technical specifications
| CPU class | Intel Core i3/i5/i7/i9 |
|---|---|
| CPU generation | 11th gen (Tiger Lake) |
| Processor | Intel Core i5-1145G7(optional)Intel Core i5-1135G7(optional) |
| Memory | Up to 32GB SO-DIMM, DDR4 3200 MHz |
|---|---|
| RAM type | DDR4 |
| Maximum RAM | 32 GB |
| Storage | 1× M.2 M-Key 2242 SATA SSD1× M.2 M-Key 2280 NVMe SSD up to 4TB(optional)1× SATA III for 2.5″ HDD(optional · 2.5-SATA) |
|---|
| Display size | 19 ″ |
|---|---|
| Resolution | 1280x1024 SXGA(max) |
| Brightness | Up to 399 standard cd/m² |
| Touchscreen | Resistive(optional) |
| Contrast ratio | 1000:1 |
| Aspect ratio | 5:4 |
| Ethernet ports | 1× LAN (MIL-DTL-38999/3) |
|---|---|
| Serial interfaces | 2× RS-232 (MIL-DTL-38999/3) |
| AC/DC input | DC |
|---|---|
| Power input | 9–36 V |
| Mounting | VESA MountRack Mount |
|---|---|
| Dimensions | 482.6 × 81.4 × 399.3 mm |
| Operating temperature | -20–60 °C |
|---|---|
| Storage temperature | -30–70 °C |
| Certifications | CEFCC |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
