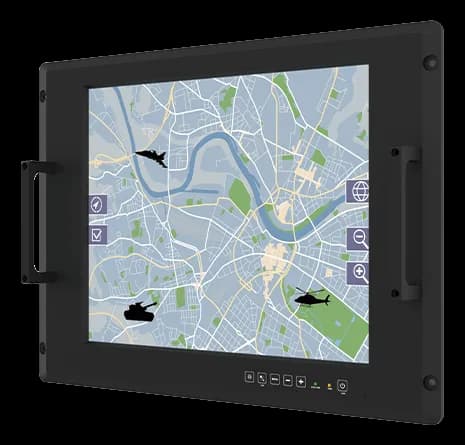

R17IT3S-RKA1ML17" fanless rugged panel PC with Intel Core i5 and TPM 2.0
- Manufacturer
R17IT3S-RKA1ML is a Winmate rugged panel PC for operator stations and technical cabinets in industrial environments, with display and computing unit gathered into a single device to install where needed.
The processor frequency runs from 2.4 to 4.4 GHz and the operating system comes with Linux, Windows 10 IoT or Windows 11 IoT. The operating temperature covers -20 to 60 °C, storage -30 to 70 °C and tolerated relative humidity reaches 95%.
At a glance
- CPU class: Intel Core i3/i5/i7/i9
- CPU generation: 11th gen (Tiger Lake)
- CPU frequency: 2.4–4.4 GHz
- TPM: TPM 2.0
- Memory: 4GB (Default) GB
Technical specifications
| CPU class | Intel Core i3/i5/i7/i9 |
|---|---|
| CPU generation | 11th gen (Tiger Lake) |
| Processor | Intel Core i5-1145G7 2.6GHz (up to 4.4GHz)(optional) |
| CPU frequency | 2.4–4.4 GHz |
| TPM | TPM 2.0 |
| Memory | 4GB (Default) GB |
|---|
| Storage | 128GB, up to 2TB |
|---|
| Display size | 17 ″ |
|---|---|
| Resolution | 1280x1024 SXGA |
| Brightness | Up to 399 standard cd/m² |
| Touchscreen | Resistive(optional) |
| Contrast ratio | 1000:1 |
| Aspect ratio | 5:4 |
| Viewing angle | 85,85,80,80 |
| Active area | 337.92 × 270.336 mm |
| Video outputs | 1× HDMI(optional) |
| OSD controls | 8 Key OSD Control Pad: Power, Brightness DOWN, Brightness UP, Night, Day, Auto / Manual, Reset, Lock |
| Ethernet ports | 2× RJ452× Intel® Ethernet Controller |
|---|---|
| USB ports | 2× USB 3.0 |
| Serial interfaces | 1× RS232/422/485 (Default RS232) (Default)1× RS232(optional) |
| AC/DC input | AC+DC |
|---|---|
| Power input | AC 100~240V, Universal, ±10%; DC 9~36V, ±10% (Optional) |
| Mounting | VESA MountRack MountPanel Mount(optional) |
|---|---|
| Dimensions | 482 × 354 × 80 mm |
| Chassis material | alluminio, metallo |
| Operating temperature | -20–60 °C |
|---|---|
| Cooling | Fanless |
| Storage temperature | -30–70 °C |
| Certifications | FCCMIL-STD-461CEMIL-STD-810 |
|---|
| Operating systems | Windows 10 IoTWindows 11 IoTLinux |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
