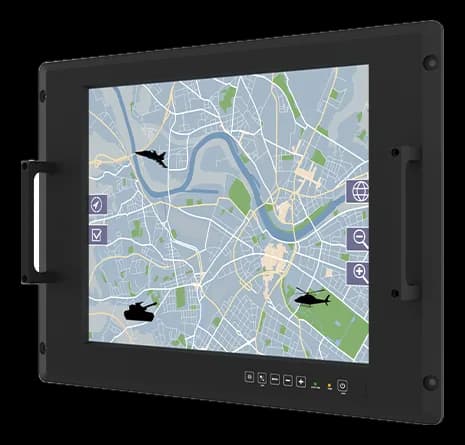

R17IT3S-MLA1-8917" fanless rugged panel PC with an Intel Core i7-1165G7
- Manufacturer
R17IT3S-MLA1-89 is a Winmate rugged panel PC for operator stations that need computing capacity directly at the machine, in a single device with an integrated display in place of the monitor-plus-PC pair.
The processor frequency starts at 2.8 GHz and rises to 4.7 GHz; the operating system comes with Windows 10 IoT or Windows 11 IoT. The aluminum frame admits storage from -30 to 70 °C, with relative humidity tolerated up to 95%.
At a glance
- CPU class: Intel Core i3/i5/i7/i9
- CPU generation: 11th gen (Tiger Lake)
- Processor: Intel Core i7-1165G7 2.8GHz (up to 4.7GHz)
- CPU frequency: 2.8–4.7 GHz
- Memory: 4GB (Default) GB
Technical specifications
| CPU class | Intel Core i3/i5/i7/i9 |
|---|---|
| CPU generation | 11th gen (Tiger Lake) |
| Processor | Intel Core i7-1165G7 2.8GHz (up to 4.7GHz) |
| CPU frequency | 2.8–4.7 GHz |
| Memory | 4GB (Default) GB |
|---|
| Storage | 1× M.2 M-Key 2280 NVMe SSD, 128GB (Default) 256GB (Optional) 512GB (Optional) 1TB (Optional) 2TB (Optional) 4TB (Optional)128GB (Default)(M.2)256GB(optional · M.2)4TB(optional · M.2)512GB(optional · M.2)1TB(optional · M.2)2TB(optional · M.2) |
|---|
| Display size | 17 ″ |
|---|---|
| Resolution | 1280x1024 SXGA |
| Brightness | Up to 399 standard cd/m² |
| Touchscreen | Resistive(optional) |
| Contrast ratio | 1000:1 |
| Aspect ratio | 5:4 |
| Viewing angle | 85,85,80,80 |
| Active area | 337.92 × 270.336 mm |
| OSD controls | 8 Key OSD Control Pad: Power, Brightness DOWN, Brightness UP, Night, Day, Auto / Manual, Reset, Lock |
| Ethernet ports | 2× 2.5 Giga LAN RJ45 Connector1× LAN (MIL-DTL-38999/3) |
|---|---|
| USB ports | 1× USB 2.0 A Type (MIL-DTL-38999/3) |
| Serial interfaces | 2× RS-232 (MIL-DTL-38999/3) |
| AC/DC input | AC+DC |
|---|---|
| Power input | AC 100~240V, Universal, ±10%; DC 9~36V, ±10% (Optional) |
| Mounting | VESA MountRack Mount(optional) |
|---|---|
| Dimensions | 482 × 354 × 80 mm |
| Chassis material | alluminio, metallo |
| Operating temperature | -20–60 °C |
|---|---|
| Cooling | Fanless |
| Storage temperature | -30–70 °C |
| Certifications | CEMIL-STD-461MIL-STD-810FCC |
|---|
| Operating systems | Windows 10 IoTWindows 11 IoT |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
