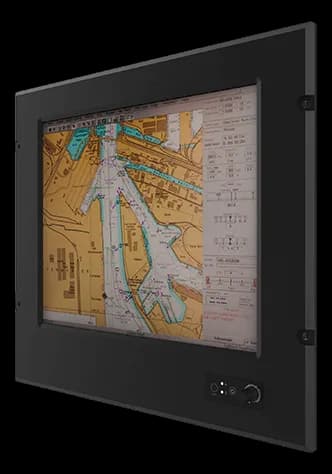

R17IT3S-MRM117" fanless panel PC with an IP66 front and an Intel Core CPU
- Manufacturer
R17IT3S-MRM1 is an industrial panel PC with a 17" display designed for integration in cabinets and machinery, where the front with IP66 protection rating allows use in harsh environments exposed to dust and water jets.
Fanless cooling removes the fans and the moving parts, while the aluminum and metal chassis keeps the weight to 8.4 kg. The DC power input accepts a 9~36 V range with a consumption of 65 W, suited to installations with unregulated machine-side lines.
At a glance
- CPU class: Intel Core i3/i5/i7/i9
- CPU frequency: 2.4–4.7 GHz
- Memory: 4GB (Default) GB
- Storage: 128GB (Default)
- Display size: 17 ″
Technical specifications
| CPU class | Intel Core i3/i5/i7/i9 |
|---|---|
| Processor | Intel Core i7-1165G7 2.8GHz (up to 4.7GHz)(optional) |
| CPU frequency | 2.4–4.7 GHz |
| Memory | 4GB (Default) GB |
|---|
| Storage | 128GB (Default)4TB(optional)512GB(optional)1TB(optional)2TB(optional)256GB(optional) |
|---|
| Display size | 17 ″ |
|---|---|
| Touchscreen | Resistive(default) |
| Brightness | Up to 399 standard cd/m² |
| Resolution | 1280x1024 SXGA |
| Contrast ratio | 1000:1 |
| Viewing angle | 85,85,80,80 |
| Active area | 337.92 × 270.336 mm |
| Video outputs | 1× HDMI (opzionale)(optional) |
| OSD controls | 1 x Power Button, 1 x Reset Button, 1 x The Dimming Knob |
| Ethernet ports | 2× Intel Ethernet Controller2× 2.5GbE (RJ45) |
|---|---|
| USB ports | 2× USB 3.0 |
| Serial interfaces | 4× RS-422/485, isolate (opzionale)(optional) |
| Audio | 2× speaker |
| Other I/O | 1 x Power Button · 1 x Reset Button |
| AC/DC input | DC |
|---|---|
| Power input | 9–36 V |
| Power consumption | 65 W |
| Mounting | VESA MountPanel Mount |
|---|---|
| Dimensions | 460 × 410 × 77.2 mm |
| Cutout dimensions | 405 × 356 mm |
| Weight | 8.4 kg |
| Chassis material | alluminio, metallo |
| IP rating | Front IP66 |
|---|---|
| Cooling | Fanless |
| Certifications | FCCCE |
|---|
| Operating systems | Windows 11 IoTWindows 10 IoT |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
Documentation
Accessories
The codes that fit this series. An accessory can be compatible with several series: it appears under each of them. Sorted by code.
| Photo | Part number | Description |
|---|---|---|

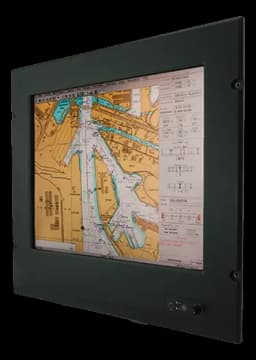

 | R17ID3S-MRM1 | 17" panel PC, 350cd/m², fanless, front IP66 |
