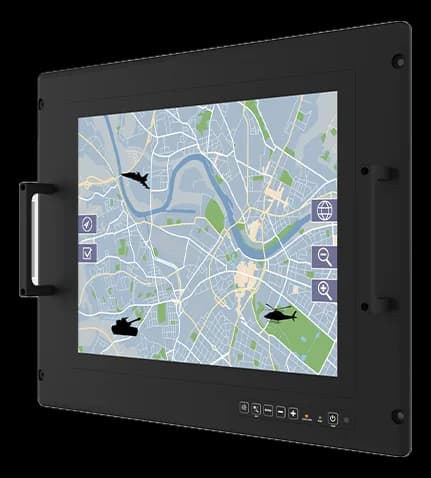

R17IT3S-MLA1FP17" rugged panel PC with a light sensor and automatic brightness adjustment
- Manufacturer
R17IT3S-MLA1FP is a Winmate rugged panel PC for operator stations in industrial environments with variable lighting: display and computing unit live in a single chassis on the cabinet front.
The processor frequency runs from 2.4 to 4.4 GHz and the operating system is offered with Linux, Windows 10 IoT or Windows 11 IoT; the power input accepts AC+DC. The operating temperature covers -20 to 60 °C, with MIL-STD-461 compliance on the electromagnetic side.
At a glance
- CPU class: Intel Core i3/i5/i7/i9
- CPU generation: 11th gen (Tiger Lake)
- CPU frequency: 2.4–4.4 GHz
- TPM: TPM 2.0
- Memory: 4GB (Default) GB
Technical specifications
| CPU class | Intel Core i3/i5/i7/i9 |
|---|---|
| CPU generation | 11th gen (Tiger Lake) |
| Processor | Intel Core i5-1145G7 2.6GHz (up to 4.4GHz)(optional) |
| CPU frequency | 2.4–4.4 GHz |
| TPM | TPM 2.0 |
| Memory | 4GB (Default) GB |
|---|
| Storage | 128GB, up to 2TB |
|---|
| Display size | 17 ″ |
|---|---|
| Resolution | 1280x1024 SXGA |
| Brightness | Up to 399 standard cd/m² |
| Touchscreen | PCAP(default)PCAP(optional) |
| Contrast ratio | 1000:1 |
| Aspect ratio | 5:4 |
| Viewing angle | 85,85,80,80 |
| Active area | 337.92 × 270.336 mm |
| Video outputs | 1× HDMI(optional) |
| OSD controls | 8 Key OSD Control Pad: Power, Brightness DOWN, Brightness UP, Night, Day, Auto / Manual, Reset, Lock |
| Ethernet ports | 2× RJ-452× Intel® Ethernet Controller |
|---|---|
| USB ports | 2× USB 3.2 Gen 1 |
| Serial interfaces | 1× RS232(Default)/422/485 |
| Sensors | Built-in Light Sensor for auto brightness control |
| AC/DC input | AC+DC |
|---|---|
| Power input | AC 100~240V, Universal, ±10% (Default); DC 9~36V, ±10% (Optional) |
| Mounting | Rack MountVESA Mount |
|---|---|
| Dimensions | 482.6 × 399.3 × 79.6 mm |
| Chassis material | alluminio, metallo |
| Operating temperature | -20–60 °C |
|---|---|
| Cooling | Fanless |
| Storage temperature | -30–70 °C |
| Certifications | CEMIL-STD-461MIL-STD-810FCC |
|---|
| Operating systems | Windows 10 IoTLinuxWindows 11 IoT |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
