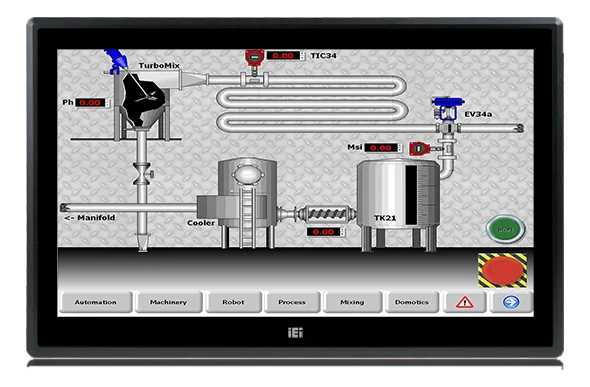

DM-F24AIndustrial panel-mount monitor with PCAP touchscreen and 3000:1 contrast
- Manufacturer
- Configurations
- 1 available configurations
DM-F24A is an IEI industrial monitor for panel mounting, intended for operator interfaces on machines, electrical cabinets and supervisory stations. The chassis is made of aluminum and metal.
The panel has a brightness of 250 cd/m², while the DC power input accepts voltages from 9 to 36 V: a range that allows the monitor to be powered directly from the DC lines present in cabinets.
At a glance
- Display size: 23.8" (16:9)
- Brightness: Up to 399 standard cd/m²
- Touchscreen: PCAP
- Video inputs: VGA
- Contrast ratio: 3000 : 1
Technical specifications
| Display size | 23.8" (16:9) |
|---|---|
| Resolution | 1920x1080 FHD(max) |
| Brightness | Up to 399 standard cd/m² |
| Touchscreen | PCAP |
| Video inputs | VGADisplayPortHDMIDVI |
| Display colors | 16.7M |
| Touch points | 10-point Projected capacitive touch window(pcap) |
| OSD controls | Smart OSD Software7-key membrane OSD keypad |
| Surface treatment | Anti-glare (AG) |
| Viewing angle | 178° / 178° |
| Contrast ratio | 3000 : 1 |
| Backlight MTBF | 30000 h |
| Touch controller | EETI EXC7200EETI EXC3188 |
| Pixel pitch | 0.28 x 0.28 mm |
| USB ports | 1× USB 2.0 (touch) |
|---|---|
| Other I/O | 1× Lockable 9V-36V DC jack · 1× 9V-36V terminal block |
| Serial interfaces | 1× RS-232 (reserved for resistive touch ATO) |
| AC/DC input | DC |
|---|---|
| Power input | 9–36 V |
| Power consumption | 28.8–30.6 W |
| Mounting | Panel MountVESA Mount(100x100) |
|---|---|
| Chassis color | Black(Black C) |
| Cutout dimensions | 358.6 × 576.6 mm |
| Dimensions | 382 × 600 × 49.4 mm |
| Chassis material | alluminio, metallo |
| IP rating | Front IP65 |
|---|---|
| Storage temperature | -20–60 °C |
| Operating temperature | -10–50 °C |
| Certifications | CEFCC |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
Family configurations
The order codes of this family: the sheet applies to all of them, the detail of each configuration is in the datasheet.
| Configuration (PN) |
|---|
| DM-F24A/PC-R41 |
