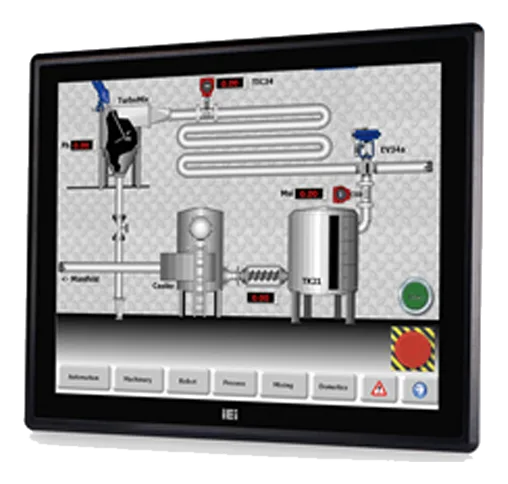

DM-F17A17" industrial panel-mount monitor with PCAP or resistive touchscreen
- Manufacturer
- Configurations
- 2 available configurations
DM-F17A is an IEI industrial panel-mount monitor intended for machine-side use, operator interfaces and process control. An aluminum and metal chassis, an anti-glare surface and panel, rack or desktop stand mounting allow it to serve stations of different types.
The panel offers a brightness of 350 cd/m² and works over an operating temperature of -20 to 60 °C, with storage allowed from -20 to 70 °C.
At a glance
- Display size: 17 ″
- Brightness: Up to 399 standard cd/m²
- Touchscreen: PCAP
- Video inputs: DisplayPort
- Contrast ratio: 1000 : 1
Technical specifications
| Display size | 17 ″ |
|---|---|
| Resolution | 1280x1024 SXGA(max) |
| Brightness | Up to 399 standard cd/m² |
| Touchscreen | PCAPResistive |
| Video inputs | DisplayPortDVIHDMIVGA |
| Display colors | 16.7M |
| Touch points | 10-point Projected capacitive touch window(pcap) |
| OSD controls | 7-key membrane OSD keypadSmart OSD Software |
| Surface treatment | Anti-glare (AG) |
| Viewing angle | 170° / 160° |
| Contrast ratio | 1000 : 1 |
| Backlight MTBF | 50000 h |
| Touch controller | 5-wire resistive single touch window/ Penmount 6000EETI EXC3188EETI EXC7200Penmount 6000 (Anti-glare Surface) |
| Pixel pitch | 0.26 x 0.26 mm |
| USB ports | 1× USB 2.0 (touch) |
|---|---|
| Other I/O | 1× Lockable 9V-36V DC jack · 1× 9V-36V terminal block |
| Serial interfaces | 1× RS-232 (reserved for resistive touch ATO) |
| AC/DC input | DC |
|---|---|
| Supply voltage | 9–36 V |
| Power consumption | 21.6–23.4 W |
| Mounting | Desktop / StandPanel MountRack MountVESA Mount(100x100) |
|---|---|
| Chassis color | Black(Black C) |
| Cutout dimensions | 324 × 391 mm |
| Dimensions | 341.4 × 408.4 × 49.3 mm |
| Chassis material | Aluminum, metal |
| IP rating | Front IP65 |
|---|---|
| Storage temperature | -20–70 °C |
| Operating temperature | -20–60 °C |
| Certifications | CEFCC |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
Family configurations
The order codes of this family: the sheet applies to all of them, the detail of each configuration is in the datasheet.
| Configuration (PN) |
|---|
| DM-F17A/PC-R32 |
| DM-F17A/R-R32 |
