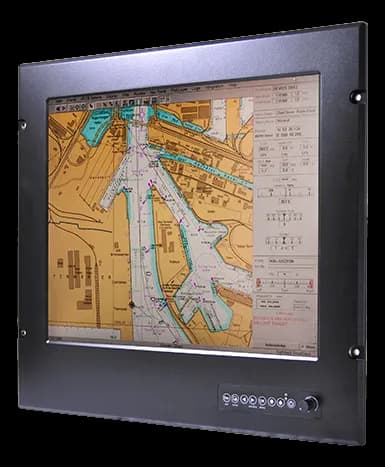

R10L210-MRM210.4" monitor with DNV / IEC 60945 type approval for onboard use
- Manufacturer
R10L210-MRM2 is a 10.4-inch Winmate industrial monitor for the bridge, the control room and onboard panels, where it works as the display of an external processing system and stays on for the whole duration of service.
On the environmental side the permitted humidity runs from 5 to 95 % and the declared module consumption is 25 W; the aluminium metal structure brings the weight to 3.7 kg.
Mounting is provided on a panel, with the monitor recessed into the host structure, or on a VESA attachment.
At a glance
- Display size: 10.4 ″
- Resolution: 800x600 SVGA
- Brightness: 600-999 outdoor cd/m²
- Video inputs: DVI
- Contrast ratio: 400:1
Technical specifications
| Display size | 10.4 ″ |
|---|---|
| Resolution | 800x600 SVGA |
| Brightness | 600-999 outdoor cd/m² |
| Touchscreen | Resistive(default) |
| Video inputs | DVIVGAS-VideoComposite BNC |
| Aspect ratio | 4:3 |
| Contrast ratio | 400:1 |
| Viewing angle | 70,70,70,60 |
| Display colors | 262K Colors |
| Active area | 211.2 × 158.4 mm |
| Surface treatment | Anti-reflective (AR)(optional) |
| Serial interfaces | 1× RS232 for Remote Control1× RS232/USB for Touch Screen |
|---|
| AC/DC input | DC |
|---|---|
| Power input | 9–36 V |
| Power consumption | 25 W |
| Mounting | VESA MountPanel Mount |
|---|---|
| Dimensions | 339 × 256 × 72 mm |
| Cutout dimensions | 300 × 232 mm |
| Weight | 3.7 kg |
| Chassis material | alluminio, metallo |
| IP rating | Front IP66 |
|---|---|
| Cooling | Fanless |
| Certified market sectors | Marine |
|---|---|
| Certifications | DNV / IEC 60945CEFCC |
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
