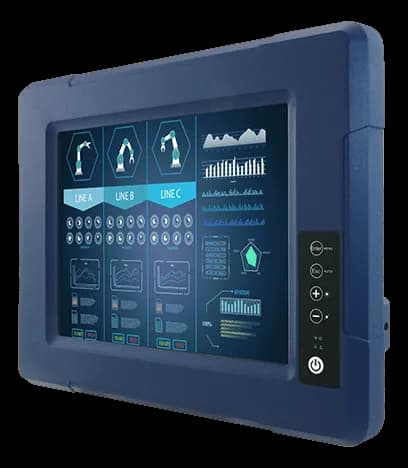

R10L100-VMT210.4" fanless rugged monitor with a 10 to 60 V DC input
- Manufacturer
R10L100-VMT2 is a Winmate rugged display for process visualization at the machine and at line operator stations, in shops where an office monitor does not guarantee operational continuity.
The storage temperature from -30 to 70 °C protects the display in transit and during idle periods in unconditioned environments, from winter warehouses to summer containers; a margin that also simplifies stock management at production sites.
At a glance
- Display size: 10.4 ″
- Resolution: 1024x768 XGA
- Brightness: Up to 399 standard cd/m²
- Contrast ratio: 1000:1
- AC/DC input: DC
Technical specifications
| Display size | 10.4 ″ |
|---|---|
| Resolution | 1024x768 XGA |
| Aspect ratio | 4:3 |
| Brightness | Up to 399 standard cd/m² |
| Touchscreen | Resistive(optional) |
| Video inputs | VGA(default)HDMI(optional) |
| Contrast ratio | 1000:1 |
| Viewing angle | 88° / 88° / 88° / 88° (L/R/U/D) |
| Display colors | 16.2M colori |
| Active area | 210.4 × 157.8 mm |
| OSD controls | 5 Keys: - , + , Power , Esc , Enter |
| USB ports | 1× USB type-A for touch screen control(optional) |
|---|---|
| Serial interfaces | 1× RS232 D-sub9 for touch screen control(optional) |
| AC/DC input | DC |
|---|---|
| Power input | 10–60 V |
| Mounting | VESA MountYoke Mount |
|---|---|
| Weight | 2.9 kg |
| Chassis material | alluminio |
| IP rating | Front IP65 |
|---|---|
| Operating temperature | -10–55 °C |
| Cooling | Fanless |
| Storage temperature | -30–70 °C |
| Certifications | FCCCE |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
