NANO-ALEPIC SBC with on-board 14 nm Intel Pentium, Celeron or Atom SoC
- Manufacturer
- Configurations
- 3 available configurations

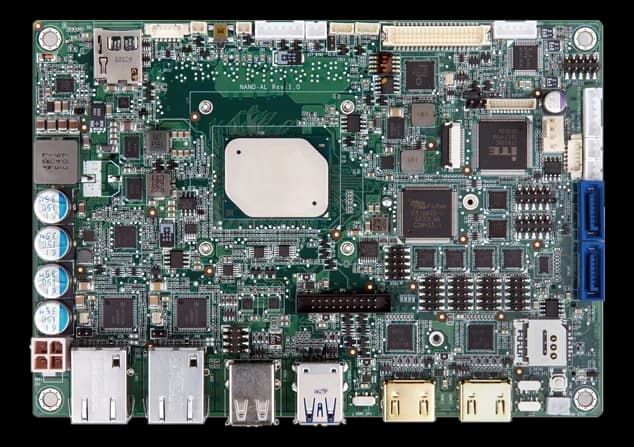

NANO-AL is a small form factor SBC in EPIC format, measuring 115 x 165 mm, with an on-board Intel Pentium, Celeron or Atom SoC built on 14 nm technology. It supports up to 8 GB DDR3L SO-DIMM memory and drives three independent displays. Power input is 9~30 V DC with a wide operating temperature range of −20~70 °C. Networking uses an Intel I211-AT PCIe controller, audio is handled by a Realtek ALC662 HD codec, AT/ATX mode is supported, and the board is CE and FCC compliant.
At a glance
- Up to 8 GB DDR3L SO-DIMM
- Ethernet with Intel I211-AT PCIe controller
- Realtek ALC662 HD audio codec
- AT/ATX mode supported
- CE and FCC compliant
Technical specifications
| Processor | Intel® Atom® x7-E3950 on-board SoC (up to 2.0GHz(optional)Intel® Atom® x5-E3930 on-board SoC (up to 1.8GHz(optional)Intel® Atom® x5-E3940 on-board SoC (up to 1.8GHz(optional)Intel® Pentium® N4200 on-board SoC (up to 2.5GHz(optional)Intel® Celeron® N3350 on-board SoC (up to 2.4GHz(optional) |
|---|
| Memory | SODIMM DDR3L 204-pin 1866/1600 MT/s |
|---|
| SATA ports | 2× SATA :6Gb/s with 5V SATA power connector (no RAID) |
|---|
| Video outputs | 2 x HDMI :up to 3840x2160@30Hz 1 x LVDS :18/24-bit dual-channel (up to 1920x1200@60Hz) 1 x iDP :interface for HDMI. LVDS, VGA, DVI, DP (up to 4096x2304@60Hz) (colay with HDMI1) |
|---|
| Keyboard & pointing device | 1× PS/2 :1x6 pin |
|---|---|
| Connectors | 1× Internal power connector (2x2 pin) |
| Other I/O | Support AT/ATX mode · COM, USB 3.0, SATA 6Gb/s, M.2, eMMC 5.0 and audio support. |
| Audio | 1× Front Audio :2x5 pin |
| Ethernet ports | Description: Intel® I211-AT PCIe controller |
| Serial interfaces | 4x Internal RS-232 :2x5 pin, P=2.0 2x Internal RS-422/485 :2x5 pin, P=2.0 |
| USB ports | 2 x External USB 2.0 2 x External USB 3.2 Gen1x1 2 x Internal USB 2.0 :2x4 pin, P=2.0 |
| Wireless | 3G/WCDMA4G/LTE |
|---|
| Form factor | EPIC |
|---|
| Power input | Wide range 9V~30V DC input design. |
|---|
| Dimensions | 115 X 165 |
|---|---|
| Weight | 0.35 kg |
| Operating temperature | -20–70 °C |
|---|
| Certifications | CEFCC |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
Family configurations
The order codes of this family: the sheet applies to all of them, the detail of each configuration is in the datasheet.
| Configuration (PN) |
|---|
| NANO-AL-ExW2 |
| NANO-AL-N1-R10 |
| NANO-AL-N2-R10 |
