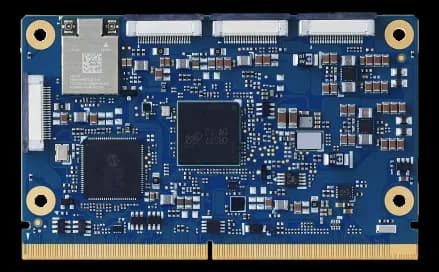

LEC-RB5SMARC 2.1 short size Computer-on-Module with Qualcomm QRB5165 SoC and 15 TOPS NPU
- Manufacturer
LEC-RB5 is an 82 x 50 mm SMARC short size CPU module compliant with SMARC revision 2.1.1: the processing sits on the module, while the I/O is routed out on your carrier. The Qualcomm QRB5165 SoC with Arm Cortex-A77 cores makes it suitable for robotics, AMRs and vision devices, where footprint and power consumption matter.
On the management side there is the SEMA board controller and a 30-pin debug header for JTAG and BMC access; security relies on the Qualcomm Secure Processing Unit and the TPM 2.0 module. The reference operating system is Linux, with Canonical Ubuntu and Yocto.
Configurations: the -CT (0~60 °C) and -ER (-20~85 °C) versions are available with 4 or 8 GB LPDDR4 and 64, 128 or 256 GB UFS, under the part numbers LEC-RB5-4G-64G-CT/-ER, LEC-RB5-4G-128G-CT/-ER, LEC-RB5-8G-128G-CT/-ER and LEC-RB5-8G-256G-CT/-ER.
At a glance
- Kryo 585 octa-core CPU up to 2.84 GHz
- Integrated Adreno 650 GPU
- 6 CSI interfaces for multi-camera systems
- Dual 10/100/1000 Mbit/s Ethernet
- Onboard UFS storage up to 256 GB
Technical specifications
| Processor | Kryo™ 585 Octa-core : 1 Kryo Gold Prime @ 2.84 GHZ + 3 Kryo Gold @ 2.42 GHz + 4 Kryo Silver @ 1.81 GHz |
|---|---|
| TPM | TPM 2.0 |
| Memory | 4 or 8 GB POP LPDDR4L-4266 |
|---|---|
| Maximum RAM | 8 GB(optional) |
| Storage | 1x SDIO (4-bit) compatible with SD/SDIO standard, up to version 3.0 |
|---|
| Video outputs | HDMI 2.0b 4K@60 HzDSI Maximum resolution 1K p60 with 24-bit RGB(HDMI) |
|---|
| Ethernet ports | 2× GbE Ethernet |
|---|---|
| CAN bus | 1× CAN2.0B only or mixed CAN2.0B and CAN FD mode, data bit rate up to 8 Mbps |
| Serial interfaces | 3× UART interfaces SER1 and SER 2 (CTS/RTS) / SER0 (TX/RX/CTS/RTS) · 2× SPI · Three I2C interfaces |
| Digital I/O | 14× GPIO with interrupt, 1× GPIO with PWM |
| Audio | I2S or SWD audio codec located on carrier |
| USB ports | 2× USB 3.14× USB 2.0 |
| Architecture standard | SMARC |
|---|---|
| Board function | CPU module |
| Expansion | 2x PCIe x2 Gen3 |
|---|
| Supply voltage | 5Vdc +/- 5% |
|---|
| Dimensions | SMARC short size module 82 mm x 50 mm |
|---|
| Operating temperature | 0–60 °C-20–85 °C(optional) |
|---|
| Operating systems | Linux |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
