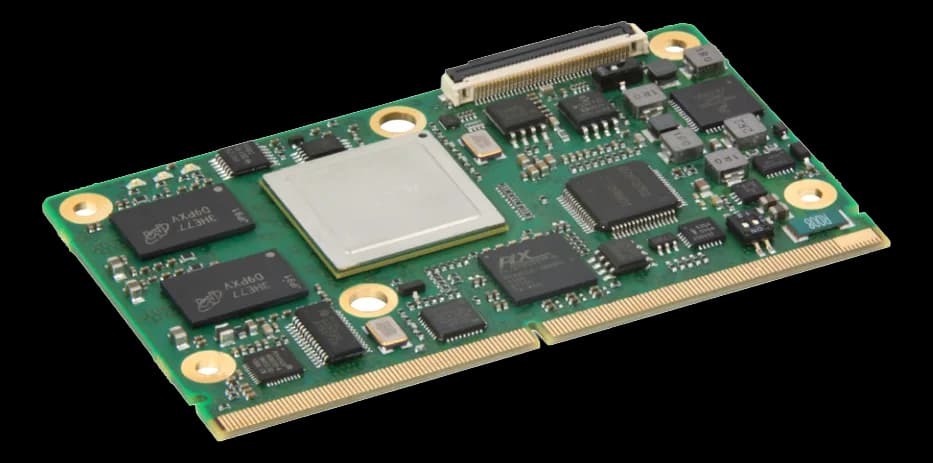

LEC-IMX6SMARC CPU module with DDR3L memory and Freescale i.MX6 ARM Cortex-A9 SoC
- Manufacturer
- Configurations
- 7 available configurations
The LEC-IMX6 mounts on a custom carrier board via the 314-pin SMARC golden finger: CPU, memory and storage sit on the module, while the connectors and the audio codec sit on the carrier. The SoC is ARM, not x86, and integrates a VPU for SD and HD video decoding.
The footprint stays the same while the compute class changes: i.MX6 Quad and Dual bring 1 MB of L2 cache, 3 displays and SATA, while i.MX6 DualLite and Solo have 512 kB of L2, 1 display and no SATA. On the software side, Windows Embedded Compact 7 and Linux are supported as standard, with Android, VxWorks and QNX available via BSP.
The family also includes the LEC-iMX6-HS configurations, with heatspreader, and LEC-iMX6-HS2.
At a glance
- Extreme Rugged variant for −40~85 °C
- HALT validation, including Thermal Shock
- eMMC up to 64 GB
- SEMA board controller for monitoring
Technical specifications
| Processor | Freescale i.MX6 Solo · Freescale SoC i.MX6 ARM Cortex A9 Solo, DualLite, Dual or Quad Core processori.MX6 DualLite(optional)i.MX6 Quad(optional)i.MX6 Solo(optional) |
|---|
| Memory | Onboard DDR3L-1066 system memory from 512 MB to 2 GB |
|---|---|
| RAM type | DDR3L |
| Storage | Supports up to 64 GB eMMC, 1x SD/MMC, 1x SATA 3Gb/s |
|---|
| Video outputs | Parallel LCD 24-bitHDMI 1.4aLVDS single channel 24-bit |
|---|
| Ethernet ports | 10/100/1000× GbE |
|---|---|
| CAN bus | 2× CAN |
| Serial interfaces | 2× SPI · 3× I²C · 4× UART (2× 4, 2× 2) |
| Digital I/O | 12× GPIO with interrupt |
| Other I/O | JTAG debug interface on test-points |
| Audio | Located on carrier |
| USB ports | 2× USB 2.0 host, 1× USB OTG |
| Architecture standard | SMARC |
|---|
| Expansion | 1× PCIe x1 |
|---|
| Dimensions | SMARC short size module, 82 mm x 50 mm |
|---|---|
| Rugged / conformal coating | Thermal Stress, Vibration Stress, Thermal Shock and Combined Test |
| Operating temperature | 0–60 °C-40–85 °C(optional) |
|---|
| Operating systems | AndroidLinuxQNXVxWorksWindows |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
