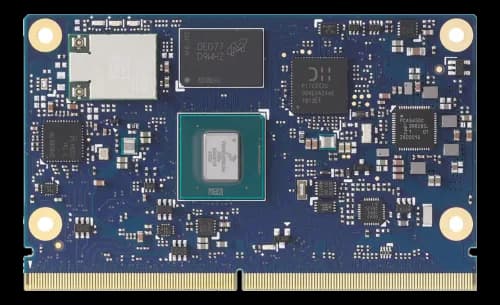

LEC-IMX8MPSMARC 2.1 short size CPU module with NXP i.MX8M Plus quad Cortex-A53
- Manufacturer
LEC-IMX8MP is a CPU module in SMARC short size 82 x 50 mm format, compliant with the SGET SMARC 2.1 specifications, to be mounted on a custom carrier board in low-power ARM embedded systems, from robotics to industrial control.
The distinctive axis is the in-SoC work on security: TrustZone with ARMv8 Cryptography Extensions, supported by the SEMA Board Controller for voltage and current monitoring, watchdog timer and logistics information. Software support covers Yocto Linux, Android, Windows 10 IoT and VxWorks as extended support.
Available in the Quad version (-Q-) with 2 or 4 GB LPDDR4 and 32 GB eMMC, with or without NPU (-N-), and in the Quadlite version (-QL-) with 2 GB LPDDR4 and 16 GB eMMC; the CT suffix indicates 0~60 °C, the ER suffix −40~85 °C, as in LEC-IMX8MP-Q-N-4G-32G-ER.
At a glance
- In-SoC 2.3 TOPS NPU, optional
- LPDDR4L-4266 up to 8 GB
- HDMI 2.0a output up to 2160p30
- Two CAN bus with CAN FD mode
- Single 5 Vdc ±5% power supply
Technical specifications
| Processor | NXP i.MX8M Plus with Quad Cortex-A53 |
|---|---|
| Security & watchdog | TrustZone technology supports ARMv8 Cryptography Extensions |
| Memory | 2/4/8GB LPDDR4L-4266 |
|---|
| Storage | 1× SDIO (4-bit) compatible with SD/SDIO standard, up to version 3.0eMMC 16, 32, 64 or 128 GB (build option) |
|---|
| Video outputs | 1× MIPI-DSI 4× lanesHDMI 2.0a (2160p30) |
|---|
| Ethernet ports | Dual GbE ports (one TSN capable) · MAC 10/100/1000× Ethernet Controller on SoC (TSN capable) |
|---|---|
| CAN bus | 2× CAN2.0B only or mixed CAN2.0B and CAN FD mode, data bit rate up to 8 Mbps |
| Serial interfaces | 3× UART interfaces SER1 and SER 2 (CTS/RTS) / SER0 (TX/RX/CTS/RTS) |
| Digital I/O | 14× GPIO with interrupt, 1× GPIO with PWM |
| Audio | I2S audio codec (located on carrier) |
| USB ports | CT 2× USB 3.0, 3× USB 2.0, 1× USB 2.0 OTG(optional)ER 1× USB 3.0, 1× USB 2.0/OTG(optional) |
| Architecture standard | SMARC |
|---|---|
| Board function | CPU module |
| Expansion | 2× PCIe x1 Gen3 |
|---|
| Supply voltage | 5Vdc +/- 5% |
|---|
| Dimensions | SMARC short size module 82 mm x 50 mm |
|---|
| Operating temperature | 0–60 °C-40–85 °C(optional) |
|---|
| Operating systems | AndroidLinuxVxWorksWindows 10 IoT |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
