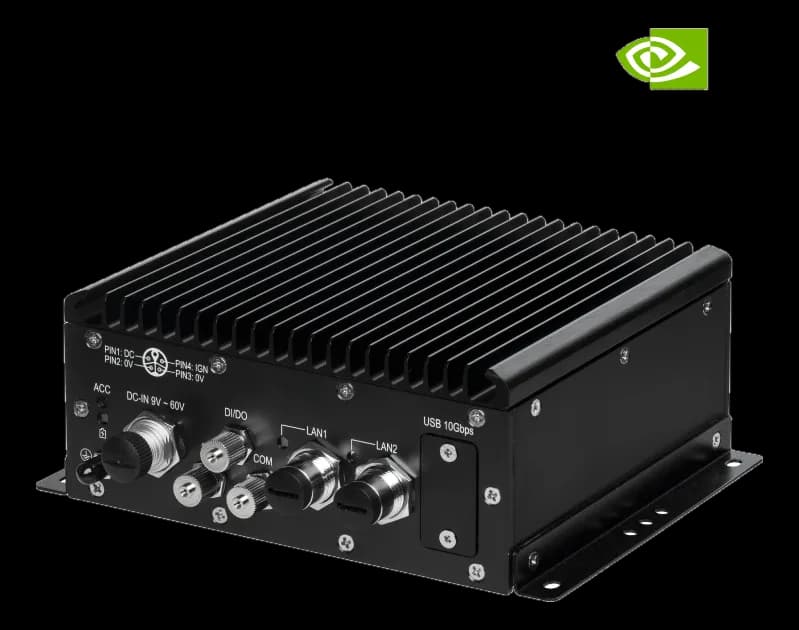

IBOX-600-IP66Fanless wall mount edge AI computer with EN 50155 and E-Mark
- Manufacturer
IBOX-600-IP66 is a Sintrones edge AI computer in a fanless aluminum chassis, designed for wall installations on vehicles and exposed plants.
The module is chosen when ordering among Orin NX 8GB, Orin NX 16GB, Orin Nano 4GB and Orin Nano 8GB, for declared performance from 20 to 100 TOPS. Platform security is handled by the Platform Security Controller and Security Engine, while power follows the ignition cycle of the vehicle.
At a glance
- CPU class: ARM Cortex-A78AE
- Processor: 8-core ARM Cortex-A78AE
- Memory: ≥4 GB
- RAM type: LPDDR5
- Storage: 1× M.2 M-Key 2280 (NVMe, BSP preinstallato)
Technical specifications
| AI module | NVIDIA Jetson Orin NX(optional)NVIDIA Jetson Orin Nano(optional) |
|---|---|
| CPU class | ARM Cortex-A78AE |
| Processor | 8-core ARM Cortex-A78AE |
| Security & watchdog | Platform Security Controller (PSC), Security Engine (SE) |
| Memory | ≥4 GB |
|---|---|
| RAM type | LPDDR5 |
| Storage | 1× M.2 M-Key 2280 (NVMe, BSP preinstallato)≥256 GBM.2 M-Key H:8.5mmM.2 B-Key H:8.5mmSSD NVMe M.2 2280, 240/480/960 GB (accessorio obbligatorio)Supporta SSD NVMe esterno (JetPack preinstallato)(SSD/HDD) |
|---|
| Video outputs | 1× HDMI (Type-A), 4K1× HDMI 2.1 (Type-A), 3840×2160@30Hz(3840x2160) |
|---|
| Ethernet ports | 2× Ethernet (M12)LAN/ETH 1: 2.5 GbE (10/100/1000/2500BASE-T) |
|---|---|
| USB ports | 2× USB 3.2 (Type-A, con cover di protezione)1× USB Type-C (solo recovery)2× USB 3.2 (Type-A, con cover), banda 10 Gbps condivisaUSB 3.2 Gen 2, 5 V/900 mA(10 Gbps) |
| Serial interfaces | 1× RS-232/422/485 (M8 A-coded) |
| Digital I/O | 1× M8 A-coded: 3× DI / 4× DO(in)1× M8 A-coded: 3× DI / 4× DO(out) |
| CAN bus | 1× CAN FD (M8 A-coded) |
| Wireless | Wi-FiGPS/GNSS |
|---|
| Expansion | M.2 E-Key H:8.5mm1× M.2 E-Key 22301× mPCIe full-size (USB 2.0)(Mini-PCIe)1× M.2 B-Key 3042/52 (USB 3.0, slot Nano SIM)(WWAN) |
|---|
| AC/DC input | DC |
|---|---|
| Power input | 9–60 V |
| Ignition management | Smart power and ignition management for various vehicles |
| Battery / UPS | Optional Backup Battery for Emergency |
| Mounting | Wall Mount |
|---|---|
| Dimensions | 135 × 66 × 150 mm |
| Weight | 1630 g kg |
| Chassis material | alluminio |
| Cooling | Fanless |
|---|---|
| Operating temperature | -20–60 °C-25–70 °C |
| Storage temperature | -40–80 °C |
| Certified market sectors | AutomotiveRailway |
|---|---|
| Certifications | E-MarkCEFCCMIL-STD-810EN 50155EN 45545 fire |
| Operating systems | Linux |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
