IBOX-600Fanless in-vehicle edge AI computer with EN 50155 and E-Mark
- Manufacturer

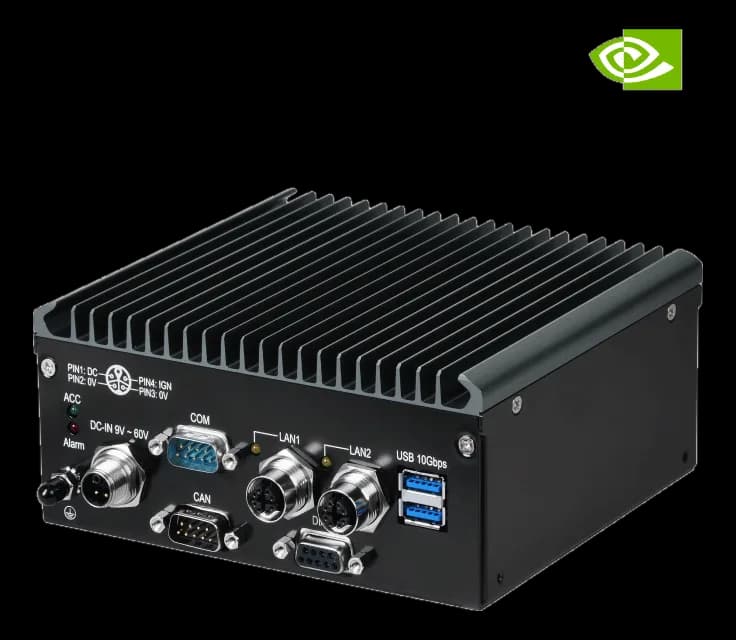

IBOX-600 is a Sintrones edge AI computer in a fanless aluminum chassis, mountable on DIN rail or on a wall, for on-vehicle installations and in machine cabinets.
The Jetson module is chosen when ordering among Orin NX 8GB, Orin NX 16GB, Orin Nano 4GB and Orin Nano 8GB, with declared performance from 20 to 100 TOPS and LPDDR5 memory. Power-up management follows the ignition cycle of the vehicle and the DC input is protected against overload and overvoltage.
At a glance
- CPU class: ARM Cortex-A78AE
- Processor: 6-core Arm® Cortex® - A78AE
- Memory: 4GB 64-bit LPDDR5 GB
- RAM type: LPDDR5
- Storage: M.2 M-Key H:8.5mm
Technical specifications
| AI module | NVIDIA Jetson Orin Nano(optional)NVIDIA Jetson Orin NX(optional) |
|---|---|
| CPU class | ARM Cortex-A78AE |
| Processor | 6-core Arm® Cortex® - A78AE |
| Security & watchdog | Internal Security Subsystem with TrustZone |
| Memory | 4GB 64-bit LPDDR5 GB≥4 GB |
|---|---|
| RAM type | LPDDR5 |
| Storage | M.2 M-Key H:8.5mm3× M.2 (Wi-Fi/WWAN/SSD)1× M.2 M-Key 2280 (NVMe, BSP preinstallato)≥256 GBM.2 B-Key H:8.5mmSupporta SSD NVMe esterno (JetPack preinstallato)(SSD/HDD) |
|---|
| Video outputs | 1× HDMI (Type-A), 4K1× HDMI 2.1 (Type-A), 3840×2160@30Hz(3840x2160) |
|---|
| Ethernet ports | Connettori Ethernet selezionabili: RJ-45/M12XLAN 1: 2.5 GbE (10/100/1000/2500BASE-T)2× Ethernet (M12) |
|---|---|
| USB ports | 2× USB 3.2 (Type-A), banda 10 Gbps condivisa1× USB Type-C (solo recovery)USB 3.2 Gen 2, 5 V/900 mA(10 Gbps) |
| Serial interfaces | 1× RS-232/422/485 (DB-9) |
| Digital I/O | 1× DB-9: 4× DI / 4× DO (12 V/100 mA)(in)1× DB-9: 4× DI / 4× DO (12 V/100 mA)(out) |
| CAN bus | 1× CAN FD (DB-9) |
| Wireless | GPS/GNSSWi-Fi |
|---|
| Expansion | 1× M.2 E-Key 22302× Mini PCIe 26/52 pin (H:9.2mm)M.2 E-Key H:8.5mm1× mPCIc full-size (USB 2.0)(Mini-PCIe)1× M.2 B-Key 3042/52 (USB 3.0, slot Nano SIM)(WWAN) |
|---|
| AC/DC input | DC |
|---|---|
| Power input | 9–60 V |
| Ignition management | Smart power and ignition management for various vehicles |
| Battery / UPS | Optional Backup Battery for Emergency |
| Mounting | Wall MountDIN Rail Mount |
|---|---|
| Dimensions | 135 × 69 × 150 mm |
| Weight | 1.37 kg |
| Chassis material | alluminio |
| Cooling | Fanless |
|---|---|
| Operating temperature | -25–70 °C-20–60 °C |
| Storage temperature | -40–80 °C |
| Certified market sectors | RailwayAutomotive |
|---|---|
| Certifications | EN 45545 fireMIL-STD-810EN 50155E-MarkFCCCE |
| Operating systems | Linux |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
