IBOX-601-TVI8Fanless NVIDIA Jetson Orin NX Edge AI computer, 8 TVI/AHD inputs, wall mount
- Manufacturer

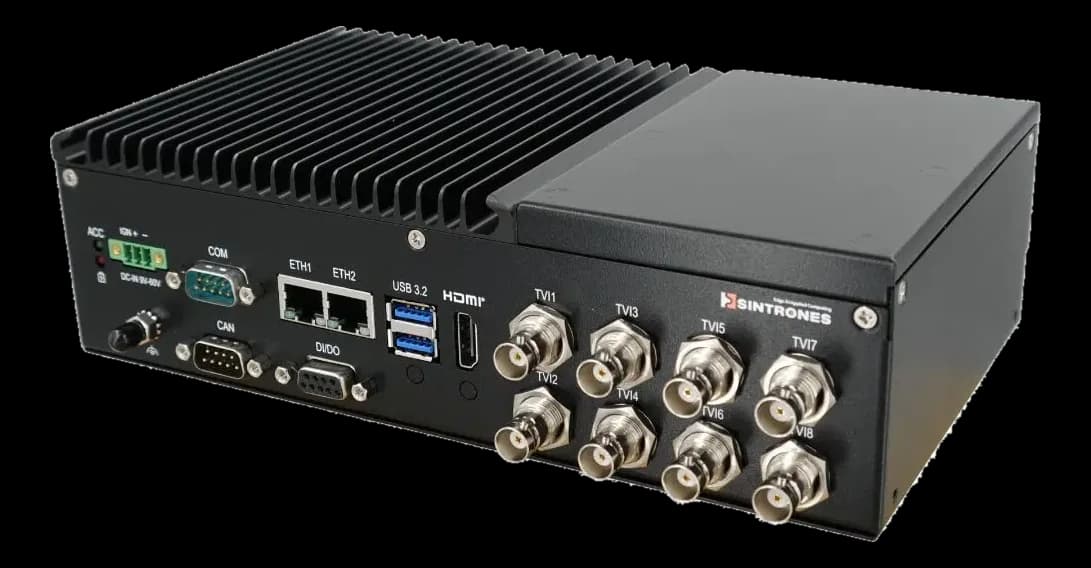

IBOX-601-TVI8 brings Jetson Orin inference where cameras are still analogue: mobile surveillance, service vehicles, agriculture and drone systems. Aluminium alloy chassis, 1.8 kg, with the interfaces grouped on the front panel to simplify cabling.
The eight TVI/AHD channels accept 720p and 1080p at 25 or 30 fps over BNC; two Ethernet ports separate the traffic, 2.5GbE towards the drone system and GbE for high-resolution sensors or LiDAR. A 12 VDC/1A output powers the connected cameras.
Available in two configurations: IBOX-601-TVI8-ONX16 with Jetson Orin NX 16GB (8-core Arm Cortex-A78AE CPU, 16 GB LPDDR5) and IBOX-601-TVI8-ON8 with Jetson Orin Nano 8GB (6-core Arm Cortex-A78AE CPU, 8 GB LPDDR5), both with 1024 CUDA cores.
At a glance
- Ignition detection with Smart Power Management
- Shock and vibration per MIL-STD-810H
- Overvoltage, overcurrent and reverse polarity protection
- Platform Security Controller and Security Engine
- Watchdog with automatic system reset
Technical specifications
| Processor | NVIDIA® Jetson Orin™ NX SoM w/ 8× TVI/AHD 1× CAN FD Edge AI Computer |
|---|---|
| Security & watchdog | Platform Security Controller (PSC), Security Engine (SE) |
| CUDA cores | 1024 |
| Storage | 1× M.2 2280 Key M for NVMe SSDM.2 2280 Key M NVMe SSD -40°C ~ 85°C(optional) |
|---|
| Video outputs | 1× HDMI® Type-A output |
|---|
| Ethernet ports | 1 x 2.5GbE for the data transmission between the drone system |
|---|---|
| USB ports | 2× USB 3.2 |
| Serial interfaces | 1× RS-232/422/485 |
| Audio | 1× HD audio output via HDMI® |
| Digital I/O | 4× DI, 4× DO |
| CAN bus | 1× CAN FD |
| Other I/O | 1× USB type-C for system recovery (device only) |
| Wireless | Wi-Fi(optional)GPS/GNSS(optional)Bluetooth(optional)5G(optional)4G/LTE(optional) |
|---|
| Expansion | 1× M.2 3042/3052 Key B for WWAN w/ SIM support |
|---|
| Power input | DC 9-60V (nominal power input DC 12V/24V/48V) via Phoenix Contact 3-pin terminal block |
|---|---|
| Ignition management | Ignition detection, Smart Power Management (BBU Supported) |
| Battery / UPS | Built-in RTC coin cell battery |
| Mounting | Wall Mount |
|---|---|
| Dimensions | 244 x 135 x 69 mm (9.61 x 5.32 x 2.72 in.) |
| Weight | 1.8 kg |
| Chassis material | Aluminum Alloy |
| Cooling | Fanless |
|---|---|
| Storage temperature | -40–80 °C |
| Certifications | E-MarkUKCAFCCCE |
|---|
| Operating systems | Linux |
|---|
| Ordering variants | IBOX-601-TVI8-zzzzz (zzzzz = ONX16 = Orin NX16GB, zzzzz = ON8 = Orin Nano 8GB) |
|---|
| Video inputs | Composite BNC |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
