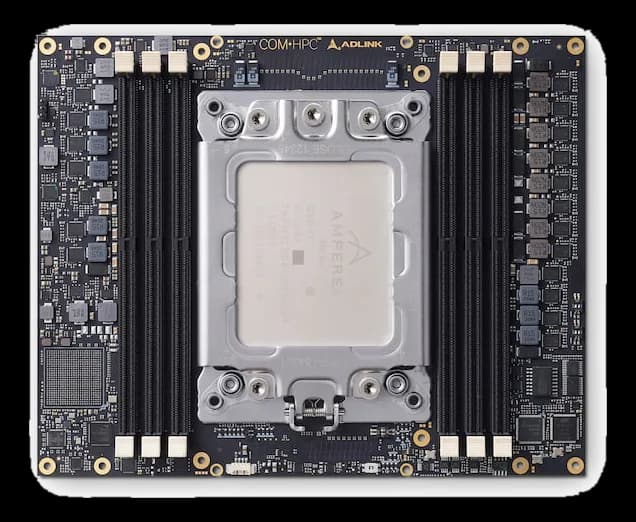

COM-HPC-ALTCOM-HPC Server Size E CPU module with Ampere Altra Arm
- Manufacturer
COM-HPC-ALT is a CPU module in PICMG COM-HPC Rev 1.0 Server Type format, Size E (200 mm x 160 mm), intended for carrier boards of edge servers, telecom equipment and data processing nodes where consolidation on Arm cores matters, not x86 compatibility.
The module is CCIX capable for heterogeneous applications (on a project basis) and integrates a Module Management Controller that monitors voltages and currents and manages the power-on sequence, AT/ATX mode and watchdog timer. Standard OS support covers Yocto Hardknott Linux 64-bit, Ubuntu Server for ARM 20.04.3 LTS and CentOS 8 Stream.
Available with Ampere Altra M128-26 (128 cores, 2.6 GHz, 190 W TDP), M96-28 (96 cores, 2.8 GHz, 190 W TDP), Q64-22 (64 cores, 2.2 GHz, 95 W TDP) or Q32-17 (32 cores, 1.7 GHz, 65 W TDP).
At a glance
- Up to 128 Arm cores (M128-26)
- Up to 768 GB DDR4 RDIMM
- 64 PCIe Gen4 lanes, three x16 available
- PCIe and IPMB dedicated to remote management
- TianoCore EDK II open source BIOS
Technical specifications
| Processor | Ampere ComputingM128-26 128 cores(optional)Q32-17 32 cores(optional)Q64-22 64 cores(optional)M96-28 96 cores(optional) |
|---|---|
| TPM | TPM 2.0 |
| CPU frequency | 2.6 GHz |
| CPU cores | 32–128 |
| Memory | 6× RDIMM DDR4 3200 MT/s |
|---|---|
| Maximum RAM | 768 GB |
| RAM type | DDR4 |
| Ethernet ports | Up to 4× 10GBASE-KR or 10GbE SFI (TBC) |
|---|---|
| Serial interfaces | 2× UART ports with console redirection |
| Digital I/O | 12× GPIO (GPI with interrupt, TBC) |
| USB ports | 4× USB 3.0/2.0 |
| Architecture standard | COM-HPC Server |
|---|---|
| Board function | CPU module |
| Expansion | 16× PCI Express Lanes 32-47 (J2): configurable to x16, x8, x4 |
|---|
| Power input | ATX: 12V±5% / 5Vsb ±5%; or AT: 12V±5% |
|---|
| Dimensions | Size E: 200 mm x 160 mm |
|---|
| Operating temperature | 0–60 °C |
|---|
| Operating systems | Linux |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
