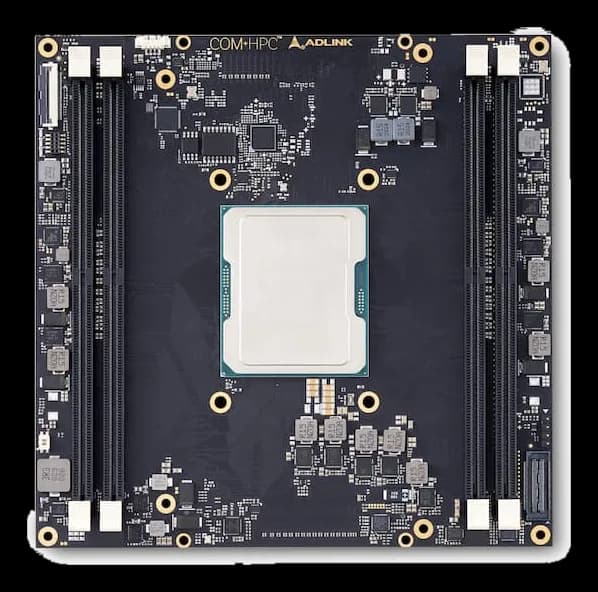

COM-HPC-SIDHCOM-HPC Server CPU module with Intel® Xeon® D-2700 and DDR4 RDIMM
- Manufacturer
COM-HPC-sIDH is a module compliant with PICMG COM-HPC Rev 1.0 Server Type in Size D format, 160 mm x 160 mm: the system logic sits on the module, the physical I/O on the carrier you design. It is used where server-class compute power is needed in an embedded footprint, from edge servers to network equipment with a BMC on the carrier.
The expansion plan counts 48 PCIe lanes, 32 Gen4 and 16 Gen3, with lanes 0-15 together with USB 3.0, SATA and NBASE-T derived from HSIO. For remote management the module exposes a PCIe dedicated to the carrier BMC and, as a build option, IPMB; the AVX-512 VNNI extension remains available on the Xeon D SoC.
Available configurations: COM-HPC-sIDH-D-2896TER, COM-HPC-sIDH-D-2796TE, COM-HPC-sIDH-D-2775TE and COM-HPC-sIDH-D-2752TER, each with its respective Intel Xeon D.
At a glance
- Up to 512 GB DDR4
- Up to 8× 10GBASE-KR, depending on SoC SKU
- Optional Extreme Rugged −40~85 °C
- TPM 2.0 on SPI interface
Technical specifications
| Processor | New Gen Intel® Xeon® D-2700 (formerly "Ice Lake-D HCC") |
|---|---|
| TPM | TPM 2.0 |
| Memory | 4× RDIMM DDR4 3200 MT/s |
|---|---|
| Maximum RAM | 512 GB |
| RAM type | DDR4 |
| Storage | 2× SATA (SATA 0, 1), build option in place of PCIe_BMC (TBC) |
|---|
| Ethernet ports | Up to 8× 10G-KR · Up to 8× 10GBASE-KR (dependent on SoC SKU) · Intel® Ethernet Connection I225 Series |
|---|---|
| Serial interfaces | 2× UART ports with console redirection |
| Digital I/O | 12× GPIO (GPI with interrupt, TBC) |
| USB ports | 4× USB 3.0/2.0/1.1 (USB 0,1,2,3) |
| Architecture standard | COM-HPC Server |
|---|---|
| Board function | CPU module |
| Expansion | 32× PCIe Gen4, 16× PCIe Gen3 lanes |
|---|
| Power input | AT: 12V±5% |
|---|
| Dimensions | Size D: 160 mm x 160 mm |
|---|
| Operating temperature | 0–60 °C-40–85 °C(optional) |
|---|
| Operating systems | VxWorksWindowsWindows 10 IoTLinux |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
