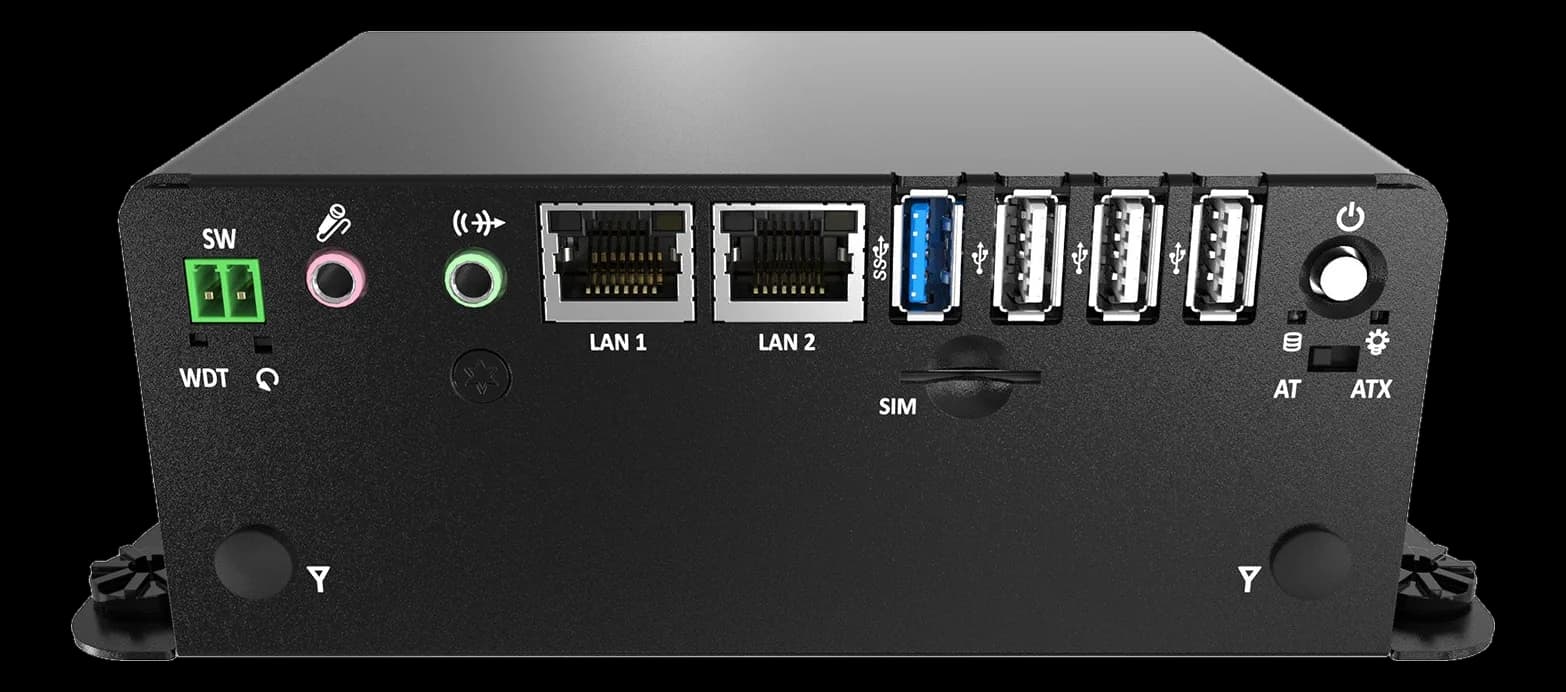

BCO-1020CFanless wall mount embedded computer with quad-core Intel Celeron J1900
- Manufacturer
- Configurations
- 1 available configurations
BCO-1020C is a fanless embedded computer for wall mount in panels and operator stations: compact chassis of 142 × 58 × 101 mm for 0.68 kg, with vibration testing to IEC 60068-2-64 and shock to IEC 60068-2-27.
The quad-core Celeron J1900 at 2 GHz on SoC is joined by DDR3L up to 8 GB, mSATA and a 2.5" SATA bay; I/O includes two RJ45, four USB, two RS-232/422/485 serial ports, eight isolated digital lines and DVI-I and DisplayPort outputs, with a DC input protected against overvoltage. The configured BCO-1020C-J1900 version belongs to the family.
At a glance
- CPU generation: Bay Trail
- Processor: Intel® Celeron® Processor J1900, Quad Core, 2MB Cache, 2.0 GHz
- Memory: 1× SO-DIMM DDR3L 1066/1333 MHz (204 pin), max 8 GB
- RAM type: DDR3L
- Maximum RAM: 8 GB
Technical specifications
| CPU generation | Bay Trail |
|---|---|
| Processor | Intel® Celeron® Processor J1900, Quad Core, 2MB Cache, 2.0 GHz |
| Chipset | SoC |
| Memory | 1× SO-DIMM DDR3L 1066/1333 MHz (204 pin), max 8 GB |
|---|---|
| RAM type | DDR3L |
| Maximum RAM | 8 GB |
| Storage | 1× mSATA (condiviso con 1× Mini PCIe)1× bay HDD SATA 2.5" interno(2.5-SATA) |
|---|
| Number of displays | 2 |
|---|---|
| Video outputs | 1× DVI-IYes (by optional split cable)(VGA)1× DP(DisplayPort) |
| Ethernet ports | 2× RJ45 |
|---|---|
| USB ports | 3× USB 2.01× USB 3.0 |
| Serial interfaces | 2× RS-232/422/485 (modulo) |
| Audio | Realtek ALC888S1× Line-out1× Mic-in |
| Digital I/O | 4× DI + 4× DO, isolate(in)4× DI + 4× DO, isolate(out) |
| Other I/O | 4x WiFi Antenna Holes · 1x Power Switch · 1x AT/ATX Switch |
| Expansion | 1× Mini PCIe full-size con socket USIM (PCIe + USB + SATA) |
|---|
| AC/DC input | DC |
|---|---|
| Power input | 9–30 V |
| Mounting | Wall Mount |
|---|---|
| Dimensions | 142 × 58 × 101 mm |
| Weight | 0.68 kg |
| Cooling | Fanless |
|---|---|
| Storage temperature | -30–70 °C |
| Operating systems | WindowsLinux |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
Family configurations
The order codes of this family: the sheet applies to all of them, the detail of each configuration is in the datasheet.
| Configuration (PN) |
|---|
| BCO-1020C-J1900 |
