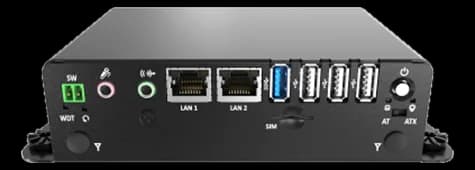

BCO-1010-J1900Compact DIN rail embedded computer with Intel Celeron J1900
- Manufacturer
BCO-1010-J1900 is an embedded computer for electrical panels, installable on DIN rail or on a wall thanks to its compact format.
The architecture is SoC based and the DC power input accepts 9~30 V. Operating humidity is allowed up to 95% and storage is rated from -30 to 70 °C: conditions compatible with installation in panels without climate control.
At a glance
- CPU generation: Bay Trail
- Processor: Intel Celeron J1900
- Memory: fino a 8 GB DDR3 SO-DIMM
- RAM type: DDR3
- Maximum RAM: 8 GB
Technical specifications
| CPU generation | Bay Trail |
|---|---|
| Processor | Intel Celeron J1900 |
| Chipset | SoC |
| Graphics | Intel Graphics |
| Memory | fino a 8 GB DDR3 SO-DIMM |
|---|---|
| RAM type | DDR3 |
| Maximum RAM | 8 GB |
| Video outputs | 1× VGA1× DVI-I |
|---|
| Ethernet ports | 2× GbE |
|---|---|
| USB ports | 8× USB 3.0 |
| Serial interfaces | 2× RS-232/422/485 |
| Audio | 1× Mic-In / Line-Out |
| Digital I/O | 4× DI + 4× DO, opzionale (BCO-1010A)(optional · out)4× DI + 4× DO, opzionale (BCO-1010A)(optional · in) |
| Expansion | 2× Mini PCIe |
|---|
| AC/DC input | DC |
|---|---|
| Power input | 9–30 V |
| Mounting | DIN Rail MountWall Mount |
|---|---|
| Dimensions | 142 × 101 × 41.5 mm |
| Weight | 0.19 kg |
| Storage temperature | -30–70 °C |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
