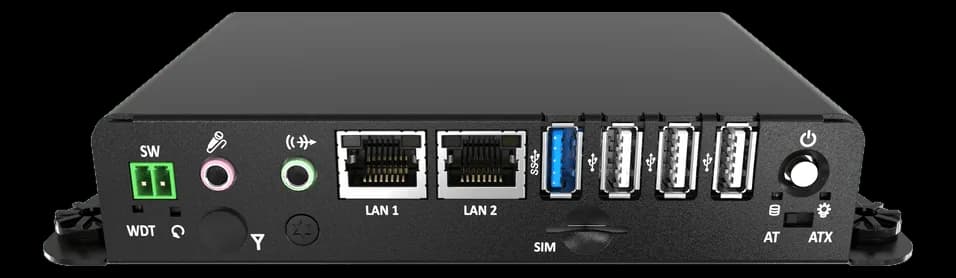

BCO-1000-J1900Fanless DIN rail embedded computer with Celeron/Pentium
- Manufacturer
BCO-1000-J1900 is a fanless embedded computer for electrical panels and control stations, installable on DIN rail or on a wall.
The Bay Trail generation SoC platform runs at 2 GHz on four cores, with integrated Intel graphics and provision for Wi-Fi antennas. The DC input accepts 9~30 V, storage is allowed from -30 to 70 °C and Linux and Windows are supported.
At a glance
- CPU generation: Bay Trail
- Memory: up to 8 GB DDR3 SO-DIMM
- RAM type: DDR3L
- Maximum RAM: 8 GB
- Storage: 1× mSATA (shared with 1× Mini PCIe)
Technical specifications
| CPU generation | Bay Trail |
|---|---|
| Processor | Intel® Celeron® Processor J1900, Quad Core, 2MB Cache, 2.0 GHz |
| Chipset | SoC |
| Graphics | Intel Graphics |
| Memory | up to 8 GB DDR3 SO-DIMM1× SO-DIMM DDR3L 1066/1333 MHz (204 pin), max 8 GB |
|---|---|
| RAM type | DDR3L |
| Maximum RAM | 8 GB |
| Storage | 1× mSATA (shared with 1× Mini PCIe) |
|---|
| Number of displays | 2 |
|---|---|
| Video outputs | 1× DVI-I1× VGAYes (by optional split cable)(VGA) |
| Ethernet ports | 2× GbE2× RJ45GbE1: Intel® I210-AT (Support Wake-on-LAN and PXE) |
|---|---|
| USB ports | 1× USB 3.03× USB 2.0 |
| Serial interfaces | 2× COM2× RS-232/422/485 |
| Audio | 1× Line-out1× Mic-inRealtek ALC888S |
| Other I/O | 3x WiFi Antenna Holes · 1x Power Switch · 1x AT/ATX Switch |
| Expansion | 1× Mini PCIe full-size with USIM socket (PCIe + USB + SATA)2× Mini PCIe |
|---|
| AC/DC input | DC |
|---|---|
| Supply voltage | 9–30 V DC |
| Mounting | DIN Rail MountWall Mount |
|---|---|
| Dimensions | 142 × 30 × 101 mm |
| Weight | 0.46 kg |
| Cooling | Fanless |
|---|---|
| Storage temperature | -30–70 °C |
| Operating systems | LinuxWindows |
|---|
| End of life (EOL) | 22/06/2026 |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
