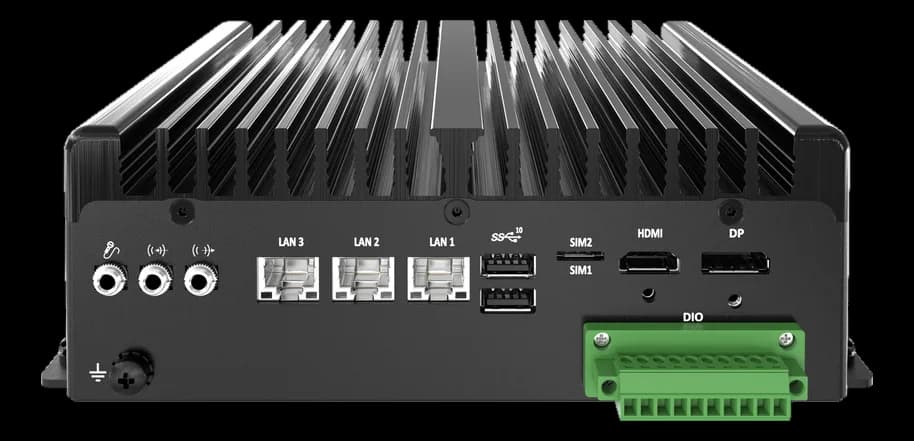

BCO-1000-ADLN-B_3LIntel Atom x embedded computer with DDR5 memory
- Manufacturer
- Configurations
- 1 available configurations
BCO-1000-ADLN-B_3L is a compact embedded computer for panels and on-machine use: the body measures 192 × 68 × 140 mm and the operating temperature runs from 0 to 50 °C.
The processor is an Intel N97 (4 cores) or an Atom x7835RE (8 cores), both with a 12 W TDP and DDR5 up to 32 GB; the network counts three 2.5GbE RJ45 ports, video comes out on HDMI and DisplayPort in 4K and the two M.2 slots (B-Key and E-Key) host LTE, Wi-Fi 6E or storage modules. CE, FCC and UL certifications.
At a glance
- CPU generation: Alder Lake-N
- Processor: Intel® Alder Lake-N N97 (4C, 12W) or Intel® Atom® x7835RE (8C, 12W)
- CPU TDP: 12 W
- Memory: SO-DIMM DDR5 4800/5600 MT/s (default 8 GB)
- RAM type: DDR5
Technical specifications
| CPU generation | Alder Lake-N |
|---|---|
| Processor | Intel® Alder Lake-N N97 (4C, 12W) or Intel® Atom® x7835RE (8C, 12W) |
| CPU TDP | 12 W |
| Memory | SO-DIMM DDR5 4800/5600 MT/s (default 8 GB) |
|---|---|
| RAM type | DDR5 |
| Maximum RAM | 32 GB |
| Storage | 1× bay interno 2.5" SATA SSD (7 o 9 mm) |
|---|
| Video outputs | 1× DisplayPort 1.4a (4K)1× HDMI 1.4b (4K) |
|---|
| Ethernet ports | 3x 2.5GbE (I225-Vone co-lay with I226-LM/TSN)3× 2.5 GbE RJ45 |
|---|---|
| USB ports | 2× USB 3.22× USB 2.0 |
| Audio | Line-in/Line-out/Mic-in |
| Wireless | 4G/LTEWi-Fi |
|---|
| Expansion | 1× M.2 E-key (2230, PCIe x1 & USB 2.0), Wi-Fi 6E & BT 5.11× M.2 B-key (2242/3042, SATA/PCIe x1/USB 3.0), moduli LTE/4G/storage |
|---|
| AC/DC input | DC |
|---|---|
| Power input | 12–36 V |
| Dimensions | 192 × 68 × 140 mm |
|---|
| Operating temperature | 0–50 °C |
|---|
| Certifications | FCCCEUL |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
Family configurations
The order codes of this family: the sheet applies to all of them, the detail of each configuration is in the datasheet.
| Configuration (PN) |
|---|
| BCO-1000-ADLN-B-X7835RE-3L-Barebone |
