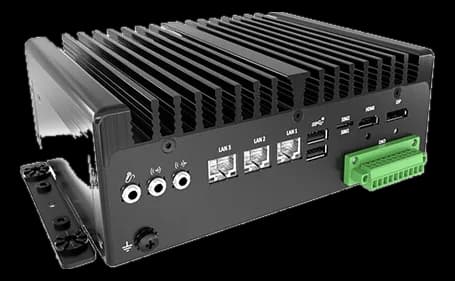

BCO-1000-ADLN-B-N97DIN rail embedded computer with Alder Lake-N or Atom
- Manufacturer
- Configurations
- 1 available configurations
BCO-1000-ADLN-B-N97 is an embedded computer for electrical panels, installable on DIN rail or on a wall; it weighs 1.5 kg and operates from 0 to 50 °C.
The processor is an Alder Lake-N N97 or an Intel Atom x7835RE, on a SoC architecture with integrated Intel graphics and DDR5 up to 16 GB; the network counts three 2.5GbE ports, video comes out on HDMI and DisplayPort, the serial ports include one RS-232 and one RS-232/422/485, and the M.2 E-Key slot hosts wireless modules.
At a glance
- CPU generation: Alder Lake-N
- Processor: Alder Lake-N Processor N977 / Intel Atom x7835RE
- Memory: fino a 16 GB DDR5 SO-DIMM
- RAM type: DDR5
- Maximum RAM: 16 GB
Technical specifications
| CPU generation | Alder Lake-N |
|---|---|
| Processor | Alder Lake-N Processor N977 / Intel Atom x7835RE |
| Chipset | SoC |
| Graphics | Intel Graphics |
| Memory | fino a 16 GB DDR5 SO-DIMM |
|---|---|
| RAM type | DDR5 |
| Maximum RAM | 16 GB |
| Video outputs | 1× HDMI1× DP(DisplayPort) |
|---|
| Ethernet ports | 3× 2.5GbE |
|---|---|
| USB ports | 2× USB 3.2 Gen 12× USB 2.0 (Type-A) |
| Serial interfaces | 1× RS-2321× RS-232/422/485 |
| Audio | Line-in/Line-out/Mic-in |
| Expansion | 1× M.2 E-Key (2230) |
|---|
| AC/DC input | DC |
|---|---|
| Power input | 12–36 V |
| Mounting | DIN Rail MountWall Mount |
|---|---|
| Dimensions | 140 × 192 × 68 mm |
| Weight | 1.5 kg |
| Operating temperature | 0–50 °C |
|---|---|
| Storage temperature | -30–85 °C |
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
Family configurations
The order codes of this family: the sheet applies to all of them, the detail of each configuration is in the datasheet.
| Configuration (PN) |
|---|
| BCO-1000-ADLN-B-N97-3L-Barebone |
