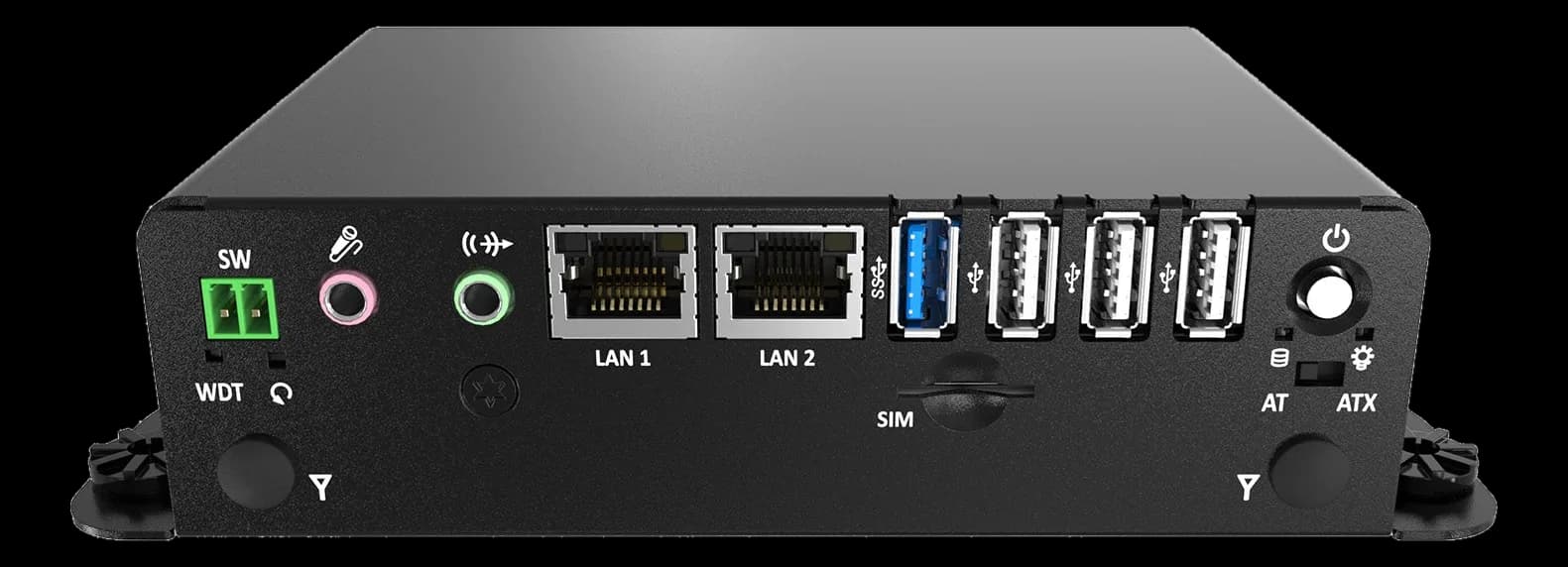

BCO-1010Fanless wall mount embedded computer with a 2.5-inch SATA bay
- Manufacturer
BCO-1010 is a fanless embedded computer for wall mount in panels and operator stations, where the absence of fans reduces periodic maintenance.
The 9~30 V DC input with AT/ATX mode, overvoltage protection and humidity allowed up to 95% make it usable in industrial environments; storage is rated from -30 to 70 °C. The dual video output combines DVI-D and DisplayPort, with Windows as the operating system.
At a glance
- Storage: 1× bay 2.5" SATA HDD (not on BCO-1000)
- USB ports: 1× USB 2.0
- Expansion: 1× Mini PCIe full-size (PCIe + USB)
- AC/DC input: DC
- Supply voltage: 9–30 V
Technical specifications
| Storage | 1× bay 2.5" SATA HDD (not on BCO-1000)1× mSATA (shared with 1× Mini-PCIe) |
|---|
| Video outputs | 1× DisplayPort1× DVI-D1× VGA (with DVI-VGA adapter) |
|---|
| Ethernet ports | 2× GbE Intel, Wake-on-LAN and PXE |
|---|---|
| USB ports | 1× USB 2.01× USB 3.0 |
| Audio | 1× Line-out1× Mic-inRealtek ALC888S Audio Codec |
| Other I/O | 1x Power Switch · 1x Reset Hole · 1x AT/ATX Switch |
| Expansion | 1× Mini PCIe full-size (PCIe + USB) |
|---|
| AC/DC input | DC |
|---|---|
| Supply voltage | 9–30 V |
| Mounting | Wall Mount |
|---|---|
| Weight | 0.62 kg |
| Cooling | Fanless |
|---|---|
| Storage temperature | -30–70 °C |
| Certifications | CEFCC |
|---|
| Operating systems | Windows |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
