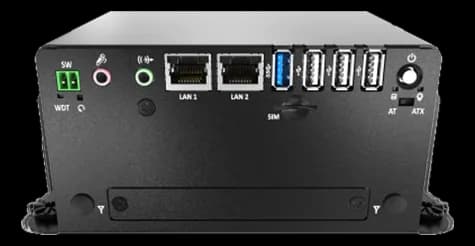

BCO-1030-J1900DIN rail embedded computer with Intel Celeron J1900
- Manufacturer
BCO-1030-J1900 is an embedded computer for electrical panels, for installation on DIN rail or on a wall; the chassis measures 142 × 101 × 75 mm and weighs 0.34 kg.
The Celeron J1900 Bay Trail SoC with integrated Intel graphics is paired with SODDR3 memory up to 8 GB; the I/O comprises six RS-232/422/485 serial ports, two GbE ports, one USB 3.0, four digital inputs and four digital outputs and two Mini PCIe slots, with DVI-I and VGA video outputs and DC power input.
At a glance
- CPU generation: Bay Trail
- Processor: Intel Celeron J1900
- Memory: fino a 8 GB DDR3 SO-DIMM
- RAM type: DDR3
- Maximum RAM: 8 GB
Technical specifications
| CPU generation | Bay Trail |
|---|---|
| Processor | Intel Celeron J1900 |
| Chipset | SoC |
| Graphics | Intel Graphics |
| Memory | fino a 8 GB DDR3 SO-DIMM |
|---|---|
| RAM type | DDR3 |
| Maximum RAM | 8 GB |
| Video outputs | 1× VGA1× DVI-I |
|---|
| Ethernet ports | 2× GbE |
|---|---|
| USB ports | 1× USB 3.0 |
| Serial interfaces | 6× RS-232/422/485 |
| Audio | 1× Mic-In / Line-Out |
| Digital I/O | 4× DI + 4× DO(in)4× DI + 4× DO(out) |
| Expansion | 2× Mini PCIe |
|---|
| AC/DC input | DC |
|---|---|
| Power input | 9–30 V |
| Mounting | Wall MountDIN Rail Mount |
|---|---|
| Dimensions | 142 × 101 × 75 mm |
| Weight | 0.34 kg |
| Storage temperature | -30–70 °C |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
