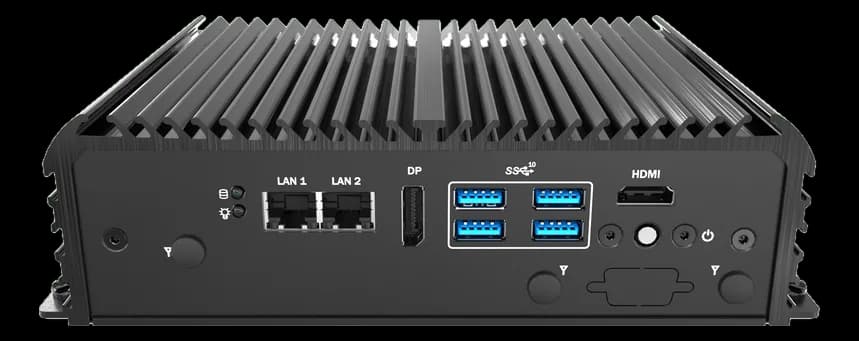

BCO-2000Fanless wall-mount embedded computer with 8th generation Intel CPU
- Manufacturer
- Configurations
- 3 available configurations
BCO-2000 is a fanless embedded computer for wall mounting (DIN rail optional) in industrial plants: extruded aluminum chassis of 192 × 61 × 140 mm and 1.4 kg, operation from -20 to 60 °C and CE, FCC, UKCA and UL certifications.
It is configured to order with 15 W 8th generation Intel processors (Celeron 4305UE, Core i3-8145UE or Core i5-8365UE) and DDR4 up to 32 GB; the I/O offers two Intel GbE LAN, four USB 3.2, two internal serial ports, 4 in / 4 out DIO and DisplayPort and HDMI outputs, with Wi-Fi, Bluetooth and LTE modules available, TPM 2.0 and reverse polarity protection.
At a glance
- CPU generation: 8th gen (Coffee Lake)
- CPU TDP: 15 W
- Memory: 1× SO-DIMM DDR4 2400 MHz (260 pin), max 32 GB
- RAM type: DDR4
- Maximum RAM: 32 GB
Technical specifications
| CPU generation | 8th gen (Coffee Lake)8ª gen (Whiskey Lake) |
|---|---|
| Processor | Intel Core i5-8365UE(optional) |
| Chipset | SoC |
| Graphics | Intel® UHD Graphics 620 for Core series Intel® UHD Graphics 610 for Celeron series |
| CPU TDP | 15 W |
| Memory | 1× SO-DIMM DDR4 2400 MHz (260 pin), max 32 GB |
|---|---|
| RAM type | DDR4 |
| Maximum RAM | 32 GB |
| Storage | 1× mSATA (condiviso con 1× Mini PCIe)1× mSATA1× bay interno 2.5" SATA HDD (H=9,5 mm)1TB SSD/HDD (opzione ordering)(optional)128GB SSD/HDD (opzione ordering)(optional)2TB SSD/HDD (opzione ordering)(optional)4TB SSD/HDD (opzione ordering)(optional)512GB SSD/HDD (opzione ordering)(optional)1TB mSATA (opzione ordering)(optional)128GB mSATA (opzione ordering)(optional)256GB mSATA (opzione ordering)(optional)512GB mSATA (opzione ordering)(optional) |
|---|
| Number of displays | 2 |
|---|---|
| Video outputs | 1× DisplayPort1× DP, 4096×2304 @60Hz(4096x2304 · DisplayPort)1× HDMI, 4096×2304 @24Hz (opzionale)(optional · 4096x2304) |
| Ethernet ports | 2× GbE RJ45Intel I210-IT (Wake-on-LAN, PXE) |
|---|---|
| USB ports | 4× USB 3.24× USB 3.2 Gen 2(10 Gbps)2× USB 2.0 (header interno)(internal) |
| Serial interfaces | 2× RS-232/422/485 (interne) |
| Audio | Realtek ALC888S HD Audio Codec1× Mic-in1× Line-out |
| Digital I/O | 2× DIO 4-bit (4-in/4-out), header pitch 2.0(pin-header)GPIO 4-in/4-out (header)(pin-header) |
| Other I/O | 5x WiFi Antenna Holes 1x 4-pin PWM smart fan · 1x RTC battery by cable |
| Wireless | Wi-Fi4G/LTEBluetooth |
|---|
| Expansion | 2× Mini PCIe full-size (1× condiviso con 1× mSATA)2× staffa I/O universale (interfaccia Mini PCIe) |
|---|
| Mounting | Wall MountDIN Rail Mount(optional) |
|---|---|
| Dimensions | 192 × 61 × 140 mm |
| Weight | 1.4 kg |
| Chassis material | alluminio, metallo(extruded) |
| Cooling | Fanless |
|---|---|
| Operating temperature | -20–60 °C |
| Storage temperature | -30–85 °C |
| Certifications | FCCCEULUKCA |
|---|
| Operating systems | WindowsLinux |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
Family configurations
The order codes of this family: the sheet applies to all of them, the detail of each configuration is in the datasheet.
| Configuration (PN) |
|---|
| BCO-2000-4305UE |
| BCO-2000-8365UE |
| BCO-2000-RYZ-R1606G |
